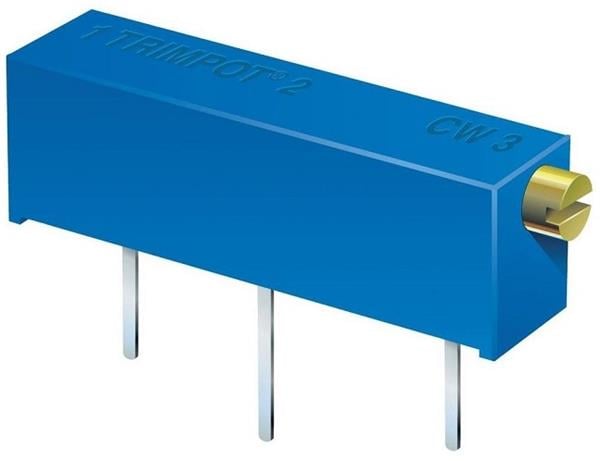

Bourns 3059J-1-200 1-0.25 in Rectangular Sealed Trimmer Resistor 20 OHMS 10% 1-1/4IN Rectangular J Leads
ManufacturerBourns(View more products from this manufacturer)
Model3059J-1-200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 4.83 mm
Height: 8 mm
Length: 31.75 mm
Tolerance: 10 %
Adjustment: Side Slot
Resistance: 20 Ohms
Orientation: Horizontal Adjustment
Unit Weight: 2.835 g
Element Type: Cermet
Power Rating: 1 W
Mounting Style: Panel Mount
Number of Turns: 22 Turn
Termination Style: Hook
Temperature Coefficient: 100 PPM / C
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
