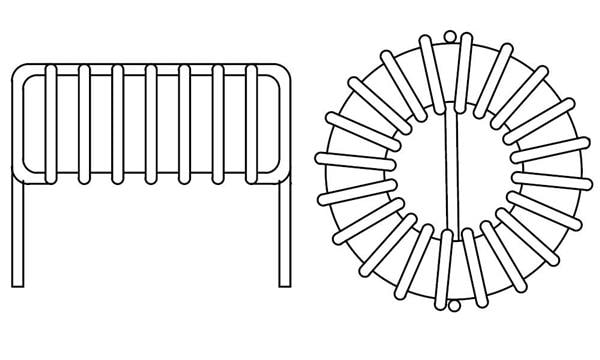

Bourns 2200LL-681-H-RC Toroidal Inductor, Toroidal
ManufacturerBourns(View more products from this manufacturer)
Model2200LL-681-H-RC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Height: 13.97 mm
Diameter: 27.94 mm
Core Type: Toroidal
Shielding: Unshielded
Tolerance: 15 %
Inductance: 680 uH
Application: High Current
Termination: Standard
Unit Weight: 22.608 g
Lead Spacing: 0.99 in
Lead Diameter: 0.027 in
Mounting Style: PCB Mount
Test Frequency: 1 kHz
Termination Style: Radial
Maximum DC Current: 2.7 A
Maximum DC Resistance: 176 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
