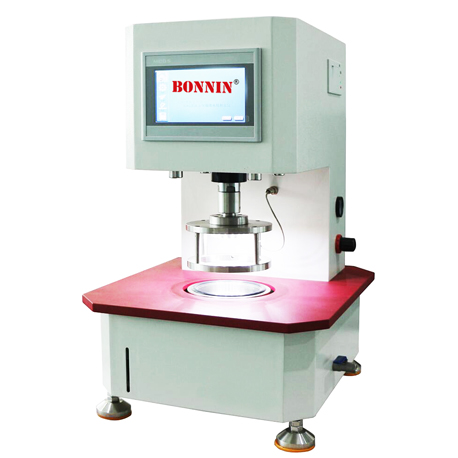

Bonnin YG812E-100 Servo Hydrostatic Pressure Head Tester

Measuring range: customized

Pressure display resolution: 0.01kPa

Sensor test accuracy: ≤1% (5% to 100% within the full range of a single sensor)

Experimental area: 100cm², 7.8cm² (optional)

Pressurization rate: 1kPa～100kPa/min (stepless adjustable)

Working mode: supercharging method, constant pressure timing, constant pressure timing, water seepage and leakage, deflection experiment

Display mode: color screen in Chinese and English

Printer: thermal miniature printer

Dimensions: 500×440×680mm

Weight: 70kg

Power supply: AC220V 50Hz 500W

Application

YG812E Textile Fabric Hydrostatic Pressure Head Tester is used to measure the water resistance of various fabrics (such as coated fabrics, tent fabrics, non-woven fabrics, membrane materials, rainproof clothing fabrics and geotextile materials, etc.) that have undergone waterproof treatment.

It complies with GB/T 4744、ISO811、AATCC 127、DIN 53886、JIS L 1092.
