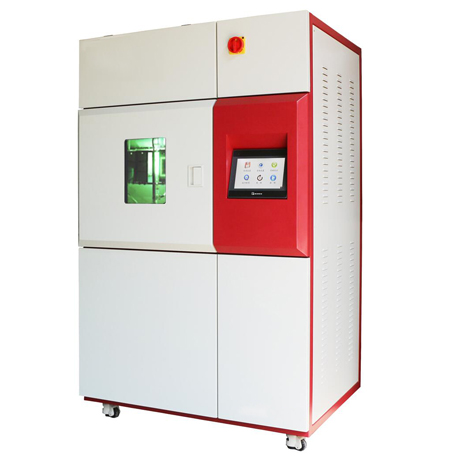

Bonnin YG611E-V Water cooling light fastness test chamber (4700cm²)

Exposure Area: 4700cm²

Sample Holders Capacity: ISO:145×45mm 47pcs Or AATCC:145×70mm 35pcs

Average Lamp Life: 1000 hours

Sample Rack Rotating Speed: 1-7rpm (adjustment)

Sample Rack Outside Diameter: Φ550mm

Chamber Temperature Range: 20-93℃ ±1 ℃ Resolution: 0.1 ℃

BPT: 35-125 ℃ ±1 ℃

BST (Option): 35-120 ℃ ±1 ℃

Chamber Humidity: Light Cycle: 10-70%RH; Resolution :0.1%

Dark Cycle: 30-95%RH; Resolution :0.1%

Irradiance Control Range:

- 0.6~3.08W/m²@420nm (Option: 340nm, 420nm, 300-400nm and 300-800nm)

- Accuracy: ±0.02W/m²@420nm.

- Digital Setting, Closed-loop Automatic Compensation

Power Supply: AC220V±10% 50Hz 10KW

Dimensions: 1200×900×1800mm(L×W×H)

Weight: 360kg
