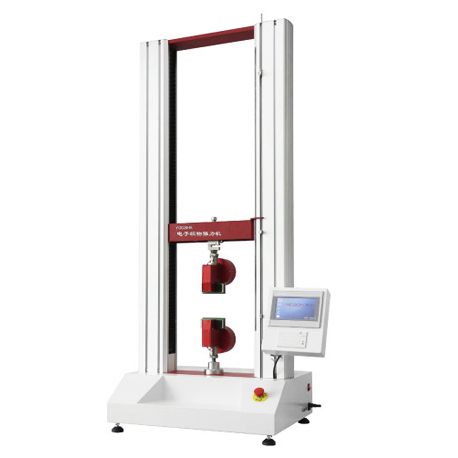

Bonnin YG026HK Electronic Universal Tensile Testing Machine (≤±0.05%F·S)

Range: 50N, 100N, 500N, 1000N, 2500N, 5000N, 10000N (optional)

Measuring force range: 1% to 100% of full scale

Force measurement accuracy: ≤±0.05%F·S

Acquisition frequency: 2000 times/second

Graduation value: 0.01N (100N range, according to the range)

Optional units: cN, N, kN, gf, kgf, lbf

Displacement speed: 0.001～1000mm/min digital speed regulation, error ≤±1%

Displacement resolution: 0.001mm

Sample clamping: pneumatic clamping (standard configuration) manual clamping (optional)

Beam travel: 1100mm (excluding fixtures)

Gantry width: 400mm

Dimensions: 720×580×1800mm

Weight: 180kg

Power supply: AC220V 50Hz 500W
