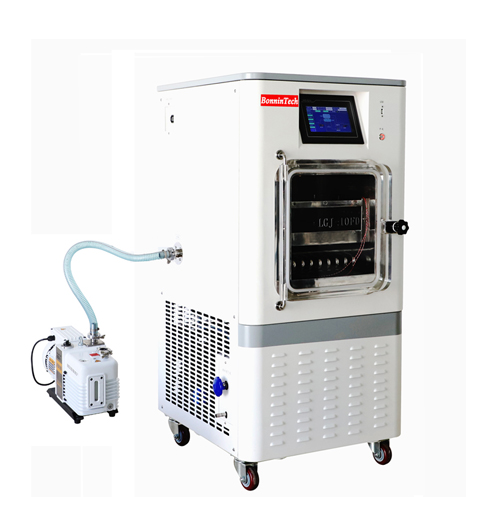

Bonnin LGJ-10FD-B Electric Heating Experimental Freeze Dryer (2Kw)

Drying chamber

Shelf area: 0.1 m2

Shelf quantity: 1 pcs

Shelf temp. range: -50°C ~ 70°C

Shelf space height: 70mm

Shelf dimension: 400×270mm

∅22mm vials(piece): 220

∅16mm vials (piece): 434

∅12mmvials (piece): 777

Tray dimensions: 395×265mm

Tray quantity: 1

Sample loaded capacity: 1L

Stoppering device: Yes

Material: SS304 (chamber, shelves, trays)

Condenser:

Max temp.: ≤-60°C (-80°C is optional)

Ice capture capacity: 6Kg/24hs

Defrost: Natural (Electric heating is optional)

Material: SS304

Vacuum:

Vacuum pump: Included

Vacuum rate: 4L/S

Vacuum degree: ≤5 Pa

Basic parameters:

Style of cooling: Air-cooled

Dimension(L*W*H): 655×640×1200mm

Weight: 210kg

Control method: PLC auto + manual

Installation power: 2Kw

Voltage: 220V/50Hz (can be change to 110V/60Hz)
