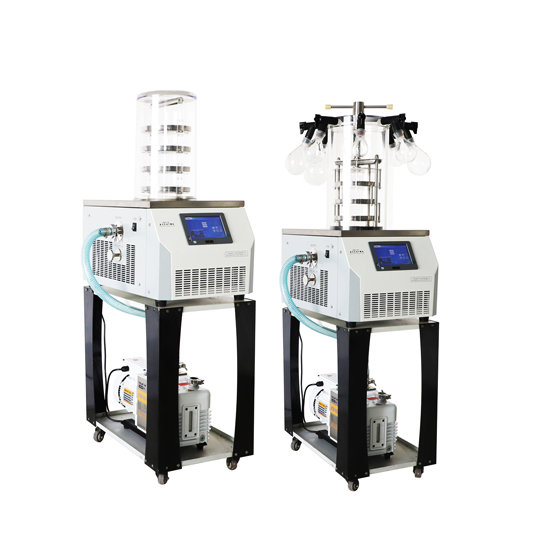

Bonnin LGJ -10A Laboratory Vacuum Freeze Dryer (1.2L; Normal type)

Type: Normal type

Dry chamber size (D*H): ∅260×430mm

Total shelf area: 0.12 m2

Shelf size(mm): ∅200*4pcs

Shelf space height (mm): 70

Shelf number: 4 pcs

Trays number: 4 pcs

Vials load capacity ∅12mm: 920 Pcs

Vials load capacity ∅16mm: 480 Pcs

Vials load capacity ∅22mm: 260 Pcs

Sample load capacity: 1.2L

Dry rack: Included

Cold trap rack: Included

Condenser Temp.: <-55°C (-80°C or even lower is optional)

Cold trap size: ∅215 * 140 mm (Depth * Height)

Ice remove capacity: 3~4kg/24hours

Cold type: Air-cooled

Defrost type: Natural (Electric is optional)

Ultimate Vacuum: <5 Pa (empty)

Vacuum pump: Included

Pump rate: 2L/S

Install Power: 970W

Voltage: 220v/50Hz or 110v/60Hz

Dimensions: 460*625* (370+430)(mm)

Weight: 100 kg
