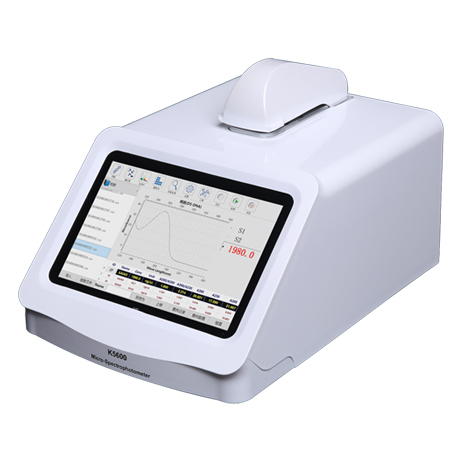

Bonnin K5600C Micro-spectrophotometer (200～850nm)

Path length: 1mm, 0.2mm, (0.1mm, 0.05mm optional)

Sample size: 0.3～2µL

Light source: Xenon flash lamp

Detector: 2048-element linear silicon CCD

Wavelength range: 200～850nm

Cuvette size(path length): 1mm, 2mm, 5mm, 10mm

Wavelength accuracy: ±1nm

Wavelength resolution: 2nm (FWHM at Hg 546nm)

Absorbance precision: 0.002 Abs

Absorbance accuracy: 1% (0.76 absorbance at 350nm)

Absorbance range: 0.002～75(150, 300 optional, 10mm equivalent absorbance)

Detects Nucleic acid up to: 0.4～3750ng/μL(7500,15000 optional, dsDNA)

Detects Protein up to: 0.01mg/ml～100mg/ml(200,400 optional, BSA)

Measurement time: ＜5s

Outline size: 24cm×21cm×11cm

Net weight: 1.92kg

K5600C cuvette parameters

Trial cuvette specifications (light path): 1/2/5/10mm

Cuvette minimum volume: 50μl

Sample level height: 5mm

Type: Recyclable micro cuvette

Cuvette darkroom: standard cuvette darkroom, suitable for multi-size cuvettes
