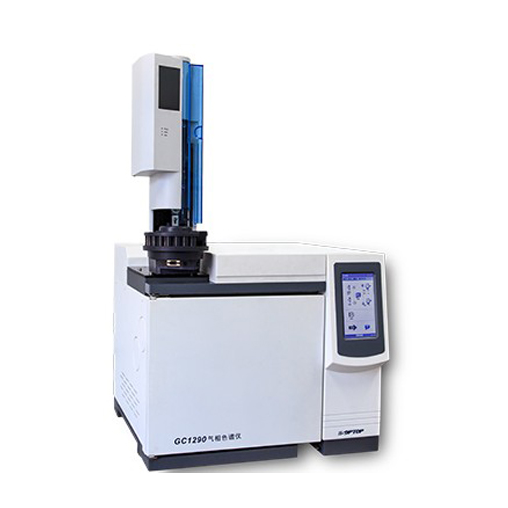

Bonnin GC1290 Gas Chromatograph

EPC(electronic pneumatic control)

7 inch touch screen display

Sample Introduction System: sample injector and evaporation chamber

Column Oven:

Temperature range: Ambient temperature +7℃ ~ 420℃ (in 1℃ increment)

Temperature accuracy: ± 0.02℃

Cooling time: 350℃～100℃≤3min, 400℃～50℃ in 8-10 min at 25℃ ambient

Programmed temperature setting: 0.1℃~80℃/min (in 1℃ increment)

Program ramps: 20 ramps in total (99 ramps available with control workstation)

Size (L*W*H): 284*280*241mm(inside)

Flame Ionization Detector (FID):

Detection limit: ≤8×10-12g/s (n-hexadecane)

Drift: ≤1.5×10-13A/h

Noise: ≤3×10-14A

Linearity range: ≥106

Flame Photometric Detector (FPD):

Detection limit: ≤8×10‐13g/s(P) ; ≤8×10‐11g/s(S)

Drift: ≤2×10‐11A/30min

Baseline noise: ≤5×10‐12A

Nitrogen-Phosphorus Detector (NPD):

Detection limit: ≤5×10-12g/s（N） (Azobenzene); ≤5×10-13g/s（P） (Malathion)
