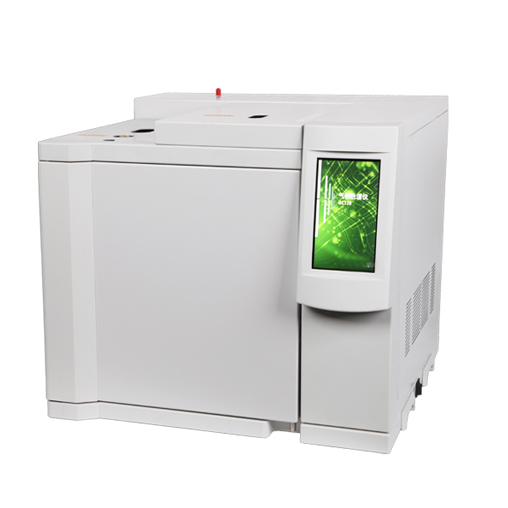

Bonnin GC112A Gas Liquid Chromatograph (22L)

Column oven:

Inner volume: 22L

Temperature range: 5 ℃ – 400 ℃ at room temperature

Temperature control accuracy: ± 0.1 ℃

Heating rate: 0.1 – 60 ℃ / min

The order of heating of the program: 9

Program temperature repeatability: ≤ 2%

cooling method: after the door

Cooling rate: ≤ 10 mins (250 ℃ -50 ℃)

Sampler:

Temperature control range: room temperature 7 ℃ – 420 ℃

Temperature control mode: independent temperature control

Carrier gas flow control mode: constant pressure

Number of simultaneous installations: up to 3

Injection unit type: packed column, shunt

Split ratio: Split ratio display; Stigma pressure range: 0 – 400kpa

Stem pressure control accuracy: 0.1kpa

Flow setting range: H20-200ml / min N20-150ml / min

Detector:

FID, TCD optional one

Temperature control range: room temperature 7 ℃ – 420 ℃

Number of simultaneous installations: up to 2

Ignition function: automatic

Hydrogen flame ionization detector (FID):

- Detection limit: ≤ 3 × 10-12 g / s (n-hexadecane)

- Baseline noise: ≤ 5 × 10-14 A

- Baseline drift: ≤ 6 × 10-13 A

- Dynamic range: 107

- RSD: ≤ 3%

Thermal Conductivity Detector (TCD):

- Sensitivity: 5000mV.ml / mg (n-hexadecane)

- Baseline noise: ≤ 0.05 mV

- Baseline drift: ≤ 0.15 mV / 30 min

- Dynamic range: 105

Power supply voltage: 220V ± 22V, 50Hz ± 0.5Hz

Power: 3000W
