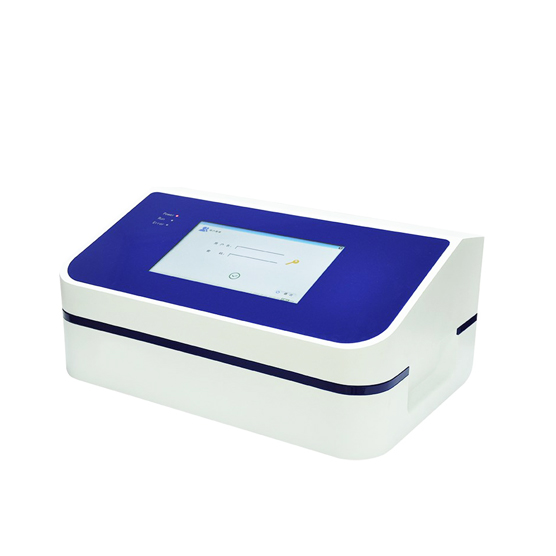

Bonnin BNT-V8.0 Automatic Filter Integrity Tester (BP:100-8000mbar; DF:1-900ml/min; WI：0.01-100ml/min)

Power Supply: 100–240 VAC, 50HZ, 120W

Operation Pressure: 100-10000 mbar (150psi)

Unit: Mbar ,kpa, psi, kgf/cm2

Operation Condition: Ambient Temperature：+5℃ ~ +40℃；Relative Humidity：10-80%

Dimension(mm): 480(Depth) ×300 (Width) × 210(Height1)

Function: Manual Bubble point Test；Basic Bubble Point Test；Extensive Bubble Point Test； Pressure Holding Test；Diffusion FLow Test；Water Immersion Test；Ultrafitration Membrane Test

Test Accuracy: Upstream Volume Test：± 4%；Bubble Point Test：± 50mbar ； Diffusion Flow Test：± 4% ；Water Immersion：± 0.01ml

Test Scope: BP：100-8000mbar DF：1-900ml/min WI：0.01-100ml/min

Applied Range: Symmetric and asymmetric membrane test, needle filters, capsule filters, flat filters, cartridge filters (within 12 cores and 20 inches), ultrafiltration membrane packages, ultrafiltration columns, various irregular filters

Audit Trial: Audit trail records can exportable and ireeversible

Authority Management: User Name and Password to Login ,4 Authority Grades，meeting the FDA 21CFR PART 11requirements

Reservation Solution(programs): 1000sets

Audit trail record storage: ≥5 years storage

Anti-backflow(liquid) device: Customization

Number of users: 1000sets

Operating System: Linux system

Operation Interface: Chinese and English bilingual operation interface

Dust and splash level: IP54 , Front is IP65

Print Function: Built-in printer，can control on PC；choose subject

Historical Record: 300000 sets records storage

Records Copy: Support USB disk to export （include test curve）；

Display Screen: High definition 10 inch ,color touch screen;

Serial Connection: RS232/USB/Support wireless connection;

Language: Chinese/English

Work Mode: Online/Offline

Applicable Environment: Above D level

Weight: 10KG
