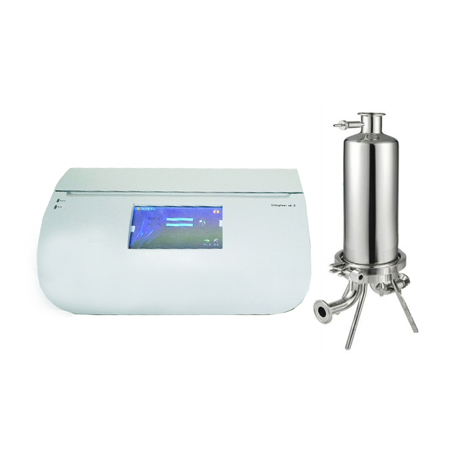

Bonnin BNT-V6.0 Filter Integrity Teste

Power: 170-240VAC,50/60Hz, 120W

Maximum working pressure: 10000mbar(150psi)

Minimum working pressure: 1000mbar(150psi)

Dimensions: 450mm(length)X280mm(Depth1)X220mm(Height)

Test pressure: 100-8000 mbar

Test accuracy: D:±4% ; BP: ±50mbar; V of WH: ±4%; Upstream volume: ±4%

Working condition: Temperature: 5℃-+40℃;Moisture:10±80%

Test time: Upstream volume test : 5min±2min; Diffusion flow test: 10min±2min; 'Base BP test: 12min±2min; Enhanced test: 16min±2min; WH: 30min±2min

Checklist print: Input parameters & output data and result in Chinese or English

History record: No number limit record store, and support for SD card and USB disk to export data

LCD: 7″ high definition color touch screen

Series I/O type: RS232, USB drive

Language of menu: Chinese or English
