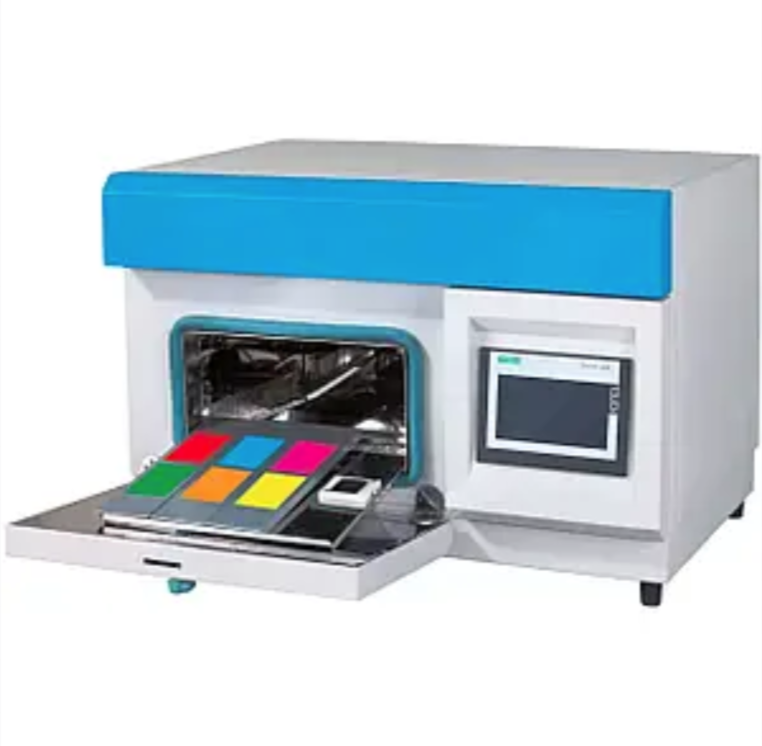

Bluepard B-SUN-II Xenon Test Chamber (1040cm2; 45°C~90°C)

Working chamber Dimension (W×D×H,mm): 390×350×290(Effective irradiation height 200)

Exterior Dimension (W×D×H,mm): 825×580×560

Sample area: 1040cm2

Temperature range: 45°C~90°C

Temperature stability: ≤±2°C

Ambient Temperature: 10~30°C

Sample surface temperature monitoring: blackboard temperature automatic control by sensor

Irradiance control: 340nm, 420nm or 300nm-400nm Wavelength automatic control (standard with@340nm High-precision sensors)

Spraying system: Yes

Lamp cooling method: air cooling

Sample shelf type: Flat plate type

Lamp: Standard lamp tube, or Atlas lamp tube(optional)

Electrical requirement: 3500W

Power consumption: 220V, 50Hz

Option:

● @340nm irradiance meter

● @340nm irradiance meter

● @300-400nm irradiance meter
