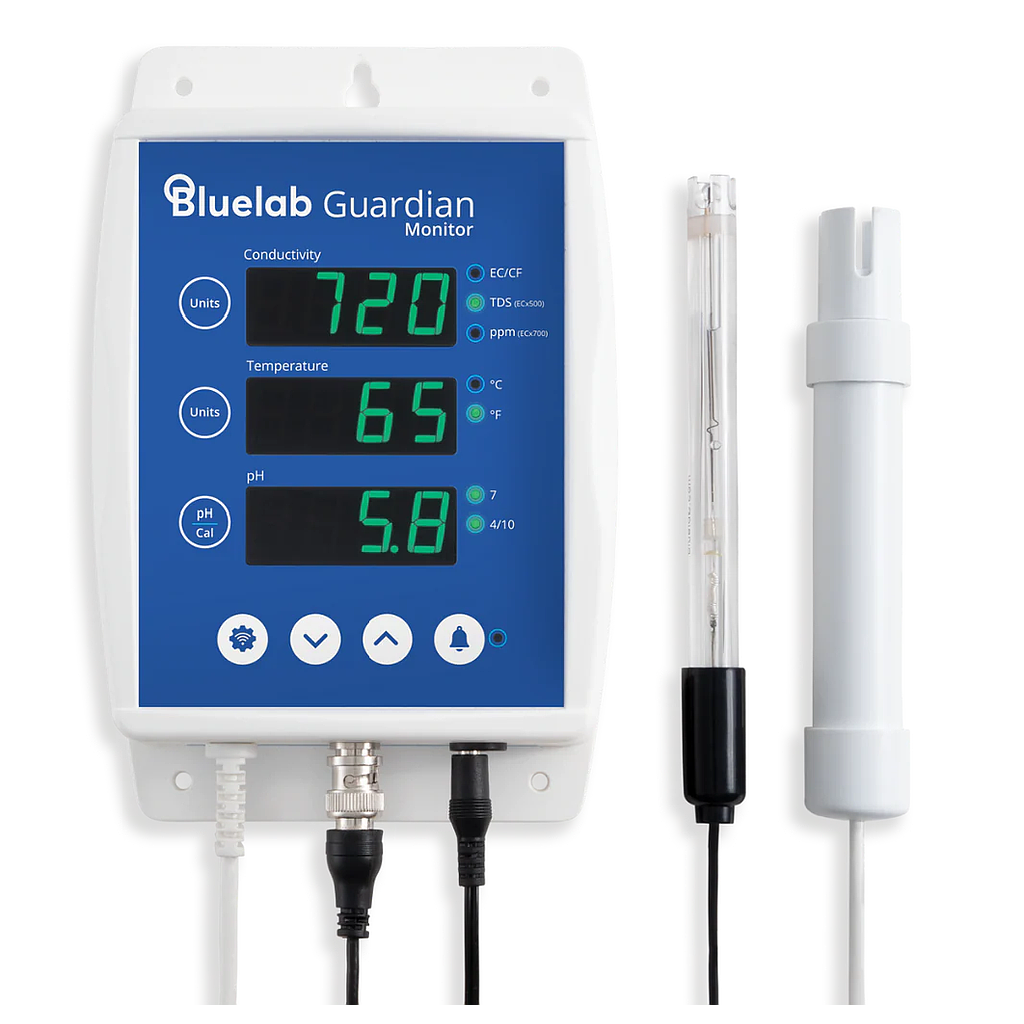

Bluelab BGUSTD02 Monitor Wi-Fi (14.0 pH, 2500 TDS/3500ppm/50EC, 50 °C)

pH

Measurement Range: 0 – 14.0 pH

Resolution: 0.01 pH

Accuracy at 25 °C / 77 °F: ±0.01 pH

Calibration: Two point (pH 7.00 and pH 4.00 or pH 10.0)

Automatic Temperature Compensation: Yes (if conductivity/temperature probe is in same solution as pH probe)

Conductivity

Measurement Range:

0 – 50 EC

0 – 2500 TDS (EC≤500)

0 – 3500 ppm (EC>700)

Resolution:

0.1 EC /1 EC/ 10 EC

1 TDS/ 10 TDS

10 ppm

Accuracy at 25 °C / 77 °F: ±0.1 EC, ±1 CF, ±50 TDS, ±70 ppm

Calibration: Not required (factory calibrated)

Automatic Temperature Compensation: Yes

Temperature

Measurement Range: 0 – 50 °C / 32 – 122 °F

Resolution: 1 °C / 1 °F

Accuracy at 25 °C / 77 °F: ±1 °C / ±2 °F

Calibration: Not required (factory calibrated)

Operating Environment: 0 – 50 °C / 32 – 122 °F

Inline Probe (Conductivity and pH): Rated for a maximum pressure of 100 psi (7 bar)

pH: ¾” NPT fitting with a 1” adapter included

Conductivity: 1” NPT fitting

Power Source

Input: 100–240 VAC, 50–60 Hz, 5 VA

4 interchangeable plug types (USA, Euro, UK, NZ/AUS)

Output: 5 VDC 1 A

Signal Range

Indoor / Urban: 66 feet / 20 meters

Outdoor / RF line-of-sight: 164 feet / 50 meters

Frequency Band: 2.4 GHz ISM

System Requirements

Android (8.0 or later) or iOS (12 or later) mobile phone for Edenic Software.

Internet connection for remote access and data-logging.

Certifications

CE, FCC, IC

Contains Wi-Fi/Bluetooth Module

IC: 21098-ESP3WROOM1

FCC ID: 2AC7Z-ESP3WROOM1

User Manual Languages: English

Radio: Wi-Fi: 2.4 GHz (802.11 b/g/n)

Bluetooth: 5 (Low Energy)
