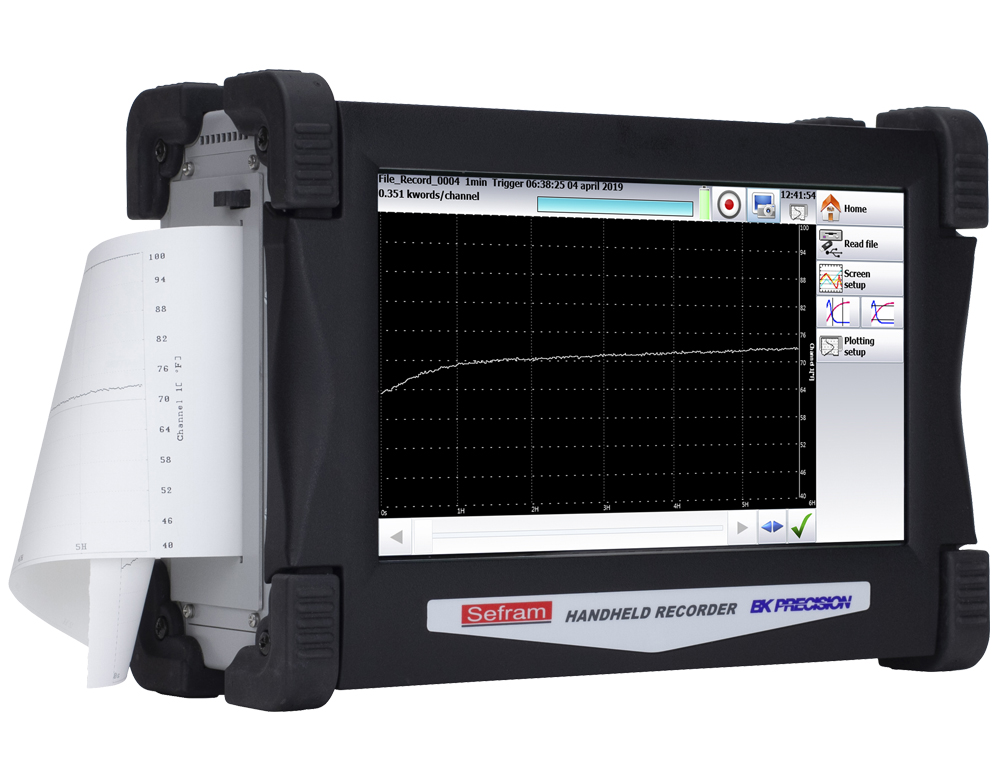

Universal Inputs
Number of Channels: 2
Voltage
Maximum Input Voltage: ±500 VDC or 424 VRMS
Maximum Offset: ± 5 ranges (up to ± 500 V)
Accuracy: 0.1% of the full scale ±10 µV
True RMS AC/DC Ranges: 200 mV to 424 V
Response Time: 100 ms typical (40 ms to 50 Hz)
Crest Factor: 2.2 and 600 V Max
Input Impedance (DC): > 25 MΩ for upper ranges < 1 V; 1 MΩ for upper ranges, 150 pF typical
Channel Isolation: > 100 MΩ at 500 VDC
Bandwidth and Filters
Bandwidth (-3 dB)
> 1 V: 100 kHz
> 50 mV: 50 kHz
5 mV: 20 kHz
True RMS AC/DC Bandwidth: 5 Hz to 500 Hz
Internal Analog Filters: 10 kHz, 1 kHz, 100 Hz, 10 Hz
Slope: 20 dB/decade
Programmable Digital Filters: 10 Hz, 1 Hz, 0.1 Hz, 0.01 Hz, 0.001 Hz
Sensitivity: 100 mV RMS min.
Duty Cycle: 10% min.
Frequency Range: 0.1 Hz to 100 kHz
Basic Accuracy: 0.02% of full scale
Data Acquisition and Trigger
Resolution: 14 bit
Fastest Sampling Interval (single channel)
File mode: 5 µs (200 kSa/s)
Memory mode: 1 µs (1 MSa/s)
Memory Length (memory mode): 32 M word segments up to 128 blocks
Triggering: Positive edge, negative edge, on logic input, delay, go no go
Pre-trigger: ±100%
Temperature with Thermocouples
Sensor Range by Type (cold junction compensation: ±0.5 °C)
J 410 °F to 2192 °F (210 °C to 1200 °C)
K 482 °F to 2498 °F (250 °C to 1370 °C)
T 392 °F to 752 °F (200 °C to 400 °C)
S 122 °F to 3200 °F (50 °C to 1760 °C)
B 392 °F to 3308 °F (200 °C to 1820 °C)
E 482 °F to 1832 °F (250 °C to 1000 °C)
N 482 °F to 2372 °F (250 °C to 1300 °C)
C 32 °F to 4208 °F (0 °C to 2320 °C)
L 392 °F to 1652 °F (200 °C to 900 °C)
Power Analysis Function
Networks: Single phase, 3 phase
Display: Fresnel diagram, oscilloscope, data
Measurements: Mean value, RMS, peak, crest factor, THD and DF for voltage & current, active, reactive and apparent power, power factor (ø) Harmonics Calculated up to rank 50, with display and record
Logic Input
Channels: 16
TTL Maximum Voltage: 24 V
Sampling Interval: 1 µs (1 MSa/s) per channel
Sensor Supply: 9 to 15 VDC
Alarms 2: A & B 0 to 5 V output
General
Internal Solid State Memory (file mode): 32 GB
Operating Temperature: 0 °C to 40 °C, 80% RH (no condensation)
Storage Temperature: -68 °F to 140 °F (-20 °C to 60 °C)
Display: 10” TFT touchscreen LCD, backlit, 1024 x 600 dots
Power Supply: 15 V / 4 A max with main adapter (100 / 240 VAC)
Interfaces: 2 x USB host, LAN (10/100 base-T with RJ45 socket)
Battery: Non removable, Lithium-ion
Typical Battery Life: 9.5 hours with standby mode, 4 hours without standby mode
Safety: IEC 61010 - CAT III 600 V
Weight: 5.5 lbs (2.5 kg)
Dimensions (W x H x D): 8.25” x 11.5” x 4.1” (210 x 295 x 105 mm)
Supplied Accessories
AC mains adapter 100 / 240 V, rugged carrying case,
CAT III banana test leads + alligator clips, bare wire to banana adapters, 25 pin male connector and backshell,
soft wipe, stylus, screwdriver,
,calibration certificate & test report
