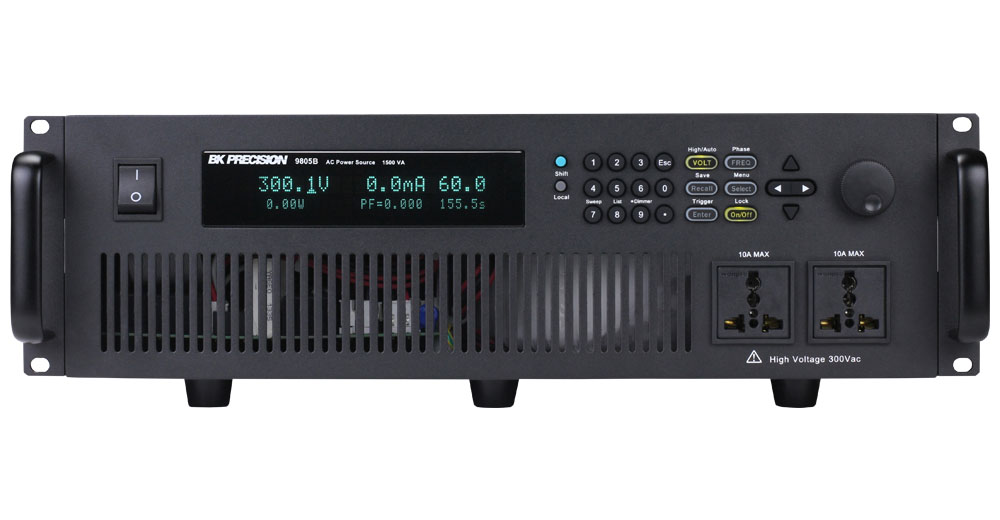

BKPRECISION 9805B Programmable AC Power Source (1500VA, 0~300V)

Without GPIB

-AC Input

Phase Single

Voltage 110 / 220 VAC ± 10%

Frequency 47 - 63 Hz

Max. Current 30A max.

Power Factor 0.7 (typical)

-AC Output

Max. Power 1500 VA

Max. Current (rms)

0 - 150 V: 12A

0 - 300 V: 6 A

Max. Current (peak)

0 - 150 V: 48 A

0 - 300 V: 24A

-Programming

Voltage (rms)

Range 0 -300 V, 150 V / 300 V (Auto)

Resolution 0.1 V

Accuracy ±(0.2% + 0.6 V)

Frequency

Range 45 - 500 Hz

Resolution 0.1 Hz at 45 - 99.9 Hz

1 Hz at 100 - 500 Hz

Accuracy ±0.1 Hz (100 Hz)

±1 Hz (100 - 500 Hz)

Phase Angle

Range 0 - 360°

Resolution 0.1°

Accuracy ±1° (45 - 65 Hz)

-Measurements

Voltage (rms)

Range 0 - 300 V

Resolution 0.1 V

Accuracy ±(0.2% + 0.6 V)

Current (peak)

Range 0 - 24 A

Resolution 0.01 A

Accuracy ±(1% + 120 mA)

-Memory 10 Locations

-External BNC I/O Trigger input, sync output, output status,

output indicator / control

-Interface LAN, USB, RS232, GPIB

-Standard Accessories AC Power cord (9801 only), unterminated power cord with input connector (9803 & 9805 only), rackmount ears & handles (9803 & 9805 only), instruction manual, test report & certificate of calibration

-Optional Accessories IT-E151 rack mount kit (9801 only)
