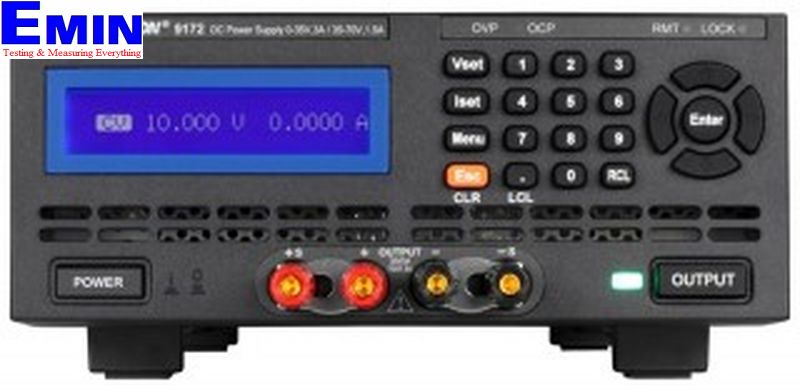

BK Precision 9172 Dual Range DC Power Supplies (Max 35V, Max 3A)

Manuafacturer: BK PRECISION
Model : 9172
Original: Taiwan
Warranty : 12 month

Channels: 1
Output Low Range: 0-35 V, 0-3 A
Output High Range: 0-70 V, 0-1.5 A
Max Output Power: 105 W
Ripple and Noise: ≤ 5 mVpp, ≤ 2 mA rms
Resolution: 2 mV, 0.1 mA
Accuracy: ≤ 0.05 % +10 mV, ≤ 0.1 %+1 mA
Dimensions: 210 x 87 x 415 mm
Rack Mount Height: 2U
Weight: 7.7 kg
Standard Interface: USB, (other interface option)
Power Requirements: 115/230 VAC ± 10%, 47 Hz - 63 Hz
Included: User manual, AC power cord, USB cable (type A to type B), line fuse, certificate of calibration and test report

Datasheet

Manual
