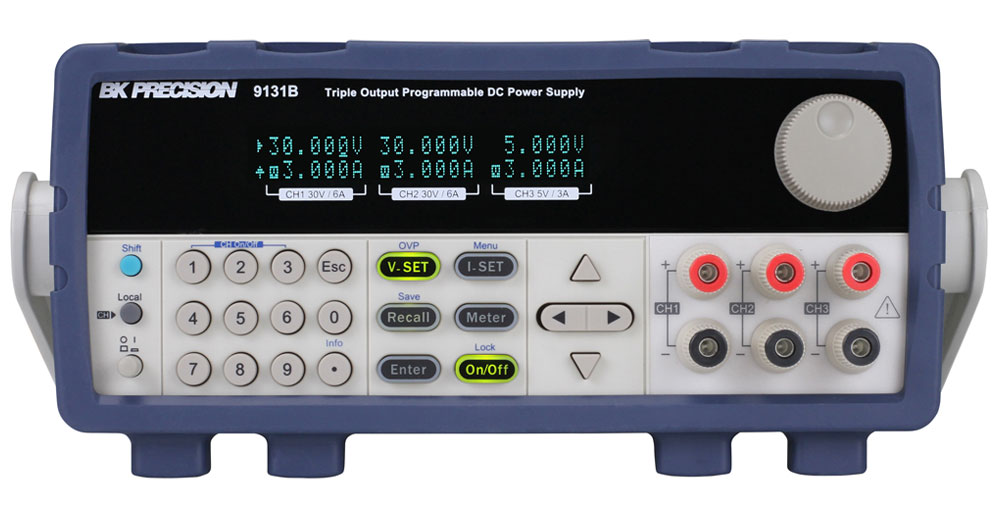

BKPRECISION 9131B Programmable Triple Output DC Power Supply (0-30V, 0-6A, 375W)

Output Rating:

Voltage: 0-30 V (Ch1 & Ch2), 0-5 V (Ch3)

Current: 0-6 A (Ch1, Ch2), 0-3 A (Ch3)

Power: 375 W

Load Regulation: ≤ 0.01% + 3 mV; ≤ 0.1% + 3 mA

Line Regulation: ≤ 0.01% + 3 mV; ≤ 0.1% + 3 mA

Ripple and Noise: ≤ 1mVrms; ≤ 5 mArms (Ch1 & Ch2), ≤ 4 mArms (Ch3)

Programming Resolution: 1 mV; 1 mA

Readback Resolution: 1 mV; 1 mA

General:

Memory: 4 memory groups with 9 locations in each group

Timer: 0.1 to 99999.9 seconds

Remote Interface: USB (USBTMC-compliant) and RS232

AC Input: 110/220 VAC (±10 %), 47 Hz to 63 Hz

Operating Temperature: 32°F to 104°F (0°C to 40°C), relative humidity up to 80%

Storage Temperature: -4°F to 158°F (-20°C to 70°C)

Dimensions (W x H x D): 8.45” x 3.47” x 17.52” (214.5 x 88.2 x 445 mm)

Weight: 33.07 lbs. (15 kg)

Standard Accessories: Power cord, instruction manual, and certificate of calibration

Optional Accessories: IT-E151 rack mount kit
