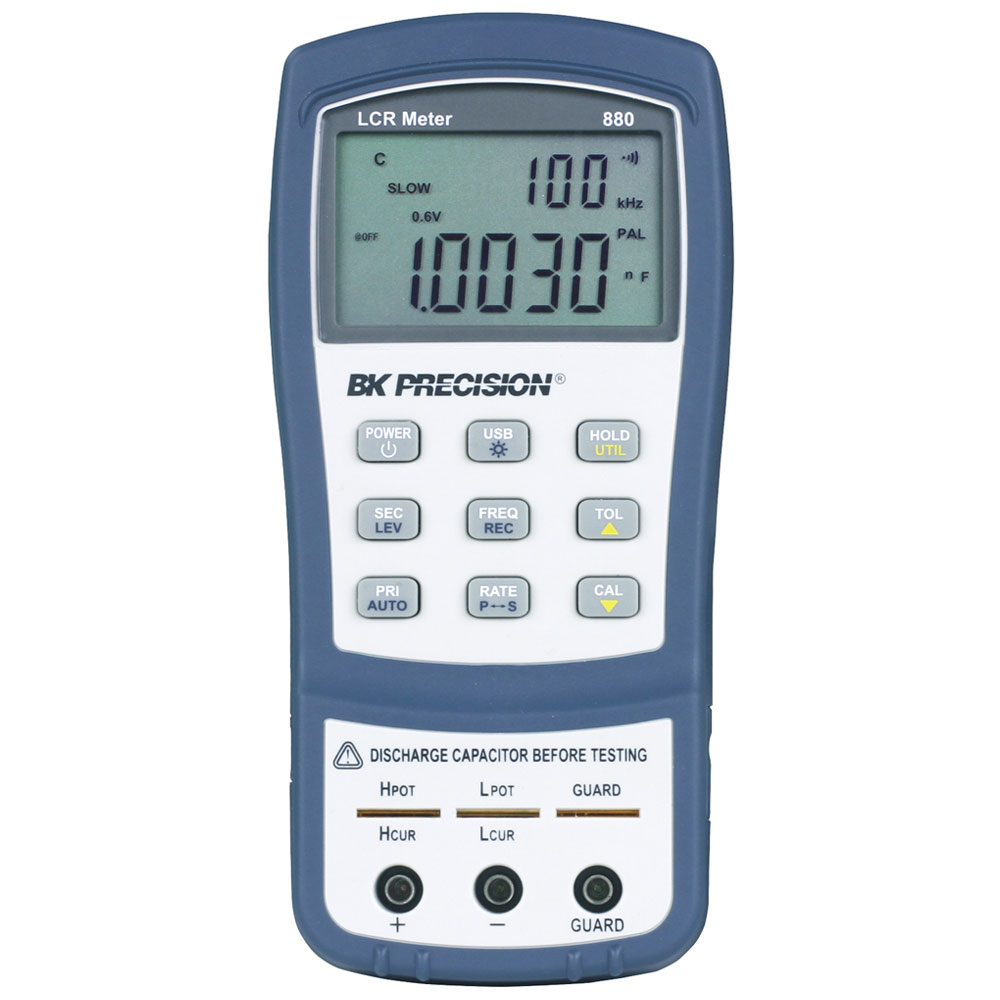

BKPRECISION 880-220V 40,000-Count Dual-Display Handheld LCR Meter (100 kHz, 220V)

Measurement Parameters: L/C/R/Z/DCR/D/Q/θ/ESR

Test Frequency Setting: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz

Actual Frequency (±0.02%): 100 Hz, 120.048 Hz, 1 kHz, 10 kHz, 100 kHz

Test Signal Level (Typical): 0.3 Vrms, 0.6 Vrms, 1 Vrms. DCR signal: 1 Vdc

Measuring Circuit Mode: Series mode / Parallel mode

Basic Accuracy: 0.1%

Ranging Mode : Auto

Response Time (Typical): 680 ms

Auto Power-Off: 5, 15, 30, 60 minutes, none

Operating Temperature: 32° F to 104° F (0° to 40° C); ≤90% R.H

Storage Temperature: -4° F to 104° F (-20° to 50° C); 0-90% R.H

Low Battery Indication (Typical): 6.8 V

Battery Life (Typical): 16 hours using alkaline battery (at 1 kHz with 100 Ω DUT, backlight off), 6 hours using Ni-MH (880 only)

Power Consumption (Typical): 28 mA (under full power battery) for operation/ 2 µA (11 µA 880 only) after power-off.

Power Requirements: 9V battery or Ext. adapter 230V: DC 12 Vmin –15 Vmax. (load 50 mA Min.)

Dimensions (L x W x H): 7.5” x 3.5” x 1.6” (190 × 90 × 41) mm

Weight: 0.767 lbs (348 g) without battery

Safety: EN61010-1:2001, EU Low Voltage Directive 2006/95/EC

Standard Accessories: Banana-to-alligator test leads, Ni-MH 9 V battery, mini USB interface cable, Quick Start insert, AC adapter* shorting plate, four-terminal shielded Kelvin clip test leads (TL8KC1), SMD tweezer (TL8SM)
