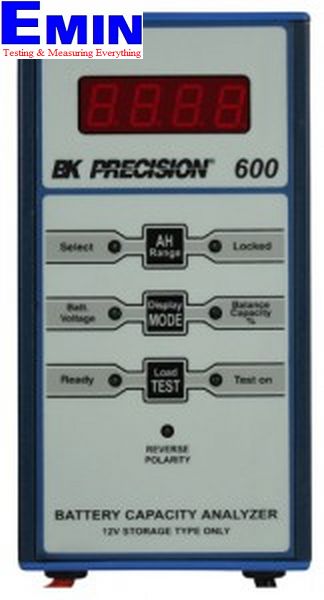

BK Precision 600 12V SLA Battery Capacity Analyzer

Manufacturer: BK Precision - USA
Model: 600
- Measures both No Load Voltage and Battery Capacity
- Displays storage capacity of 12V Lead Acid Batteries as a percentage
- Great tool for testing back up batteries for UPS, Security, Emergency Flood Light
systems
- Ideal for Automotive, UPS Maintenance, and Telecommunication applications
- Powered by Battery Under Test
Capacity Display range: 0% to 100%
Max. Input Voltage: 20V
No Load voltage Indication Accuracy: +2 counts
Settable Ah ranges: 7, 12, 24, 42, 65, & 100
Dimensions: 80 x 160 x 40mm
Weight: 1Kg
