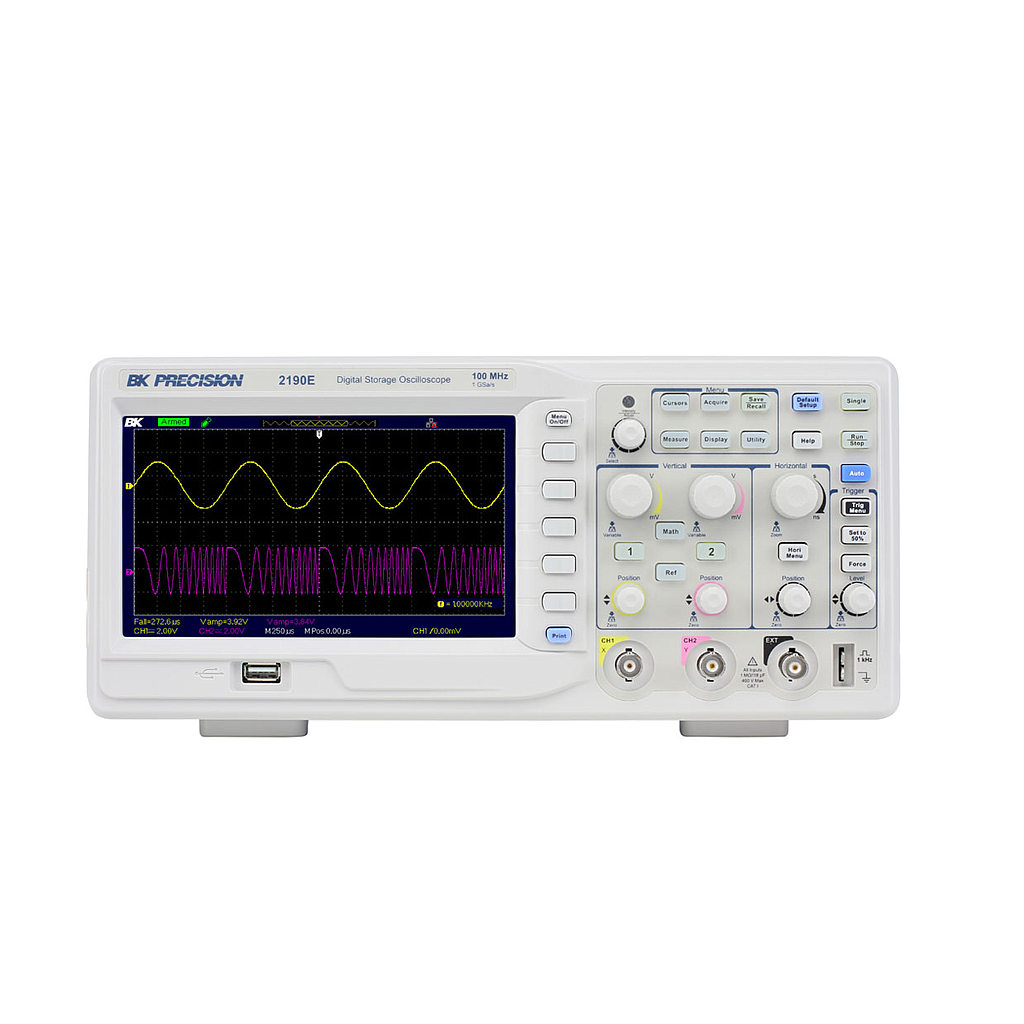

Bandwidth 100 MHz
Real Time Sampling Rate Single Channel: 1 GSa/s
Dual Channel: 500 MSa/s (for timebase faster than 250 ns/div)
Channels 2
Rise time < 3.5 ns
Record Length
40,000 points when timebase is 2.5 ns to 50 ns (20,000 points
for 100 ns to 50 ms timebase), 20,000 points for dual channel
operation
Vertical Resolution 8 bit
Vertical Sensitivity 2 mV/div -10 V/div (1-2-5 order)
DC Gain Accuracy <±3.0%: 5 mV/div to 10 V/div in fixed gain ranges
<±4.0%: 2 mV/div in variable gain ranges
Maximum input voltage 400 V (DC+AC pk-pk, 1 MΩ input impedance, X10), CAT I
Position Range 2 mV - 200 mV: ±1.6 V
206 mV - 10 V: ±40 V
Horizontal Scan Range 2.5 ns/div - 50 s/div
Scan mode: 100 ms/div - 50 s/div (1 - 2.5 - 5 sequence)
Timebase Accuracy ±50 ppm measured over 1 ms interval
Input Coupling AC, DC, GND
Input Impedance 1 MΩ±2% || 16 pF±3 pF
Vertical and Horizontal Zoom Vertically or horizontally expand or compress a live or
stopped waveform
I/O interface
USB host port on front panel supports USB flash drives,
LAN, and USB (USBTMC-compliant) device port
for connection to PC, Pass/Fail output
AC Input 100-240 VAC, CAT II, 50 VA max, 45 Hz to 440 Hz
Dimension (WxHxD) 12.7 x 5.35 x 5.24 inches (323 x 136 x 157 mm)
Weight 5.5 lbs. (2.5 kg)
One-Year Warranty
Standard Accessories User Manual, 10:1 Probe Set (2 pieces), Power Cord,
USB Interface Cable
Optional Accessories USB-to-GPIB adapter (model AK40G)
