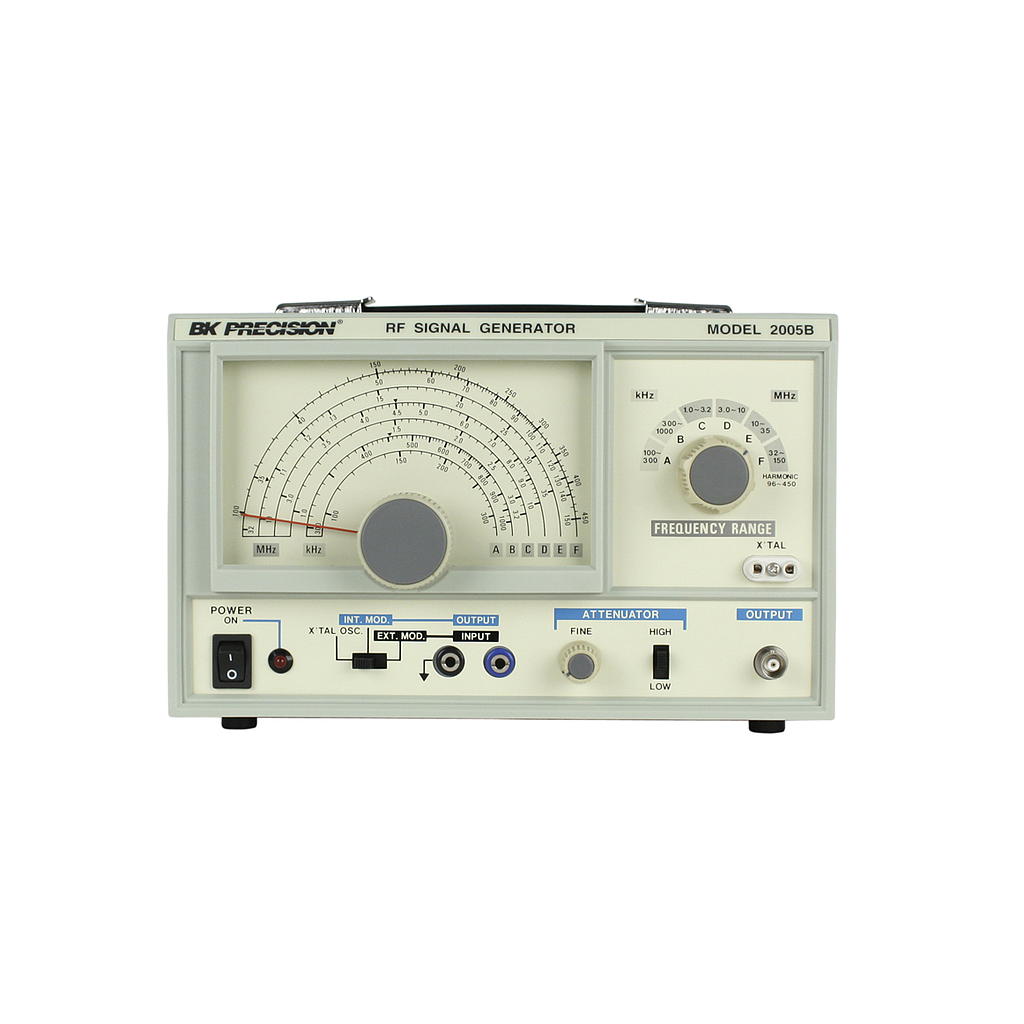

BK Precision 2005B RF Signal Generator (450MHz)

- Frequency Range:
+ 100 kHz to 150 MHz (up to 450 MHz on third harmonics)
+ A) 100 kHz-300 kHz
+ B) 300 kHz-1 MHz
+ C) 1 MHz-3.2 MHz
+ D) 3 MHz-10 MHz
+ E) 10 MHz-35 MHz
+ F) 32 MHz-150MHz
+ (96-450 MHz on harmonics)
- Dial Accuracy : ±3%
RF Output Level: Continuously variable. Step attenuator provides approximately 20 dB of attenuation
MODULATION: AM
Power: 120/220/240V VAC
Dimensions: 150 x 250 x 130 mm
Weight: 2.5 kg
SUPPLIED: BNC to Insulated Clip Output Cable, Detachable Power Cord, Instruction Manual
