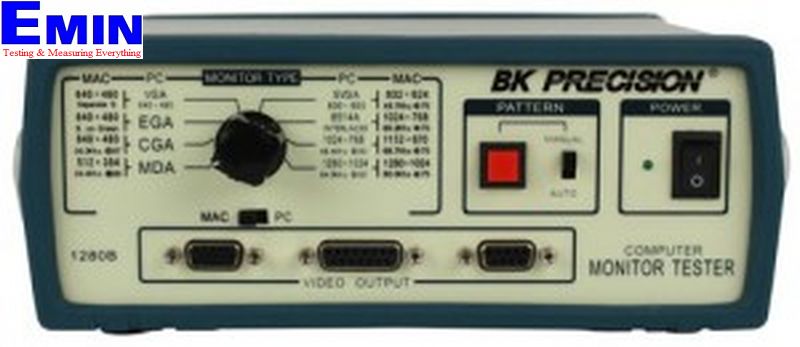

BK Precision 1280B Benchtop Computer Monitor, PC and MAC, Video Generator

- Features:
+ PC and Mac Patterns
+ 16 Monitor Types/Resolution Selections
+ Color Bar, Cross Hatch, Dot, Color Raster
+ VGA, SVGA, RGB, HV,V & Four DB 15 (Rear panel) for multiple monitor burn in
- Available Patterns:
+ Color Bars
+ Color Rasters
+ Dot
+ Crosshatch
- Outputs: RGB, H/HV Sync, V Sync
- Resolutions for PC
+ 1280 x 1024
+ 1024 x 768 (non-interlaced)
+ 8415A (interlaced)
+ SVGA 800 x 600
+ SVGA 1024 x 768
+ VGA 640 x 480
+ VGA 640 x 350
+ VGA 720 x 400
+ EGA
+ CGA
+ MDA
- Resolutions for Mac
+ 1280 x 1024
+ 1152 x 870
+ 1024 X 768 (non-interlaced)
+ 832 x 624
+ 640 x 480
+ 512 x 384
- Power Source: 9V battery or AC adapter
- Dimensions :(78 x 240 x 235mm)
- Weight 2.5lbs. (1.1kg)
Included Accessories: BE 9 AC adapter
