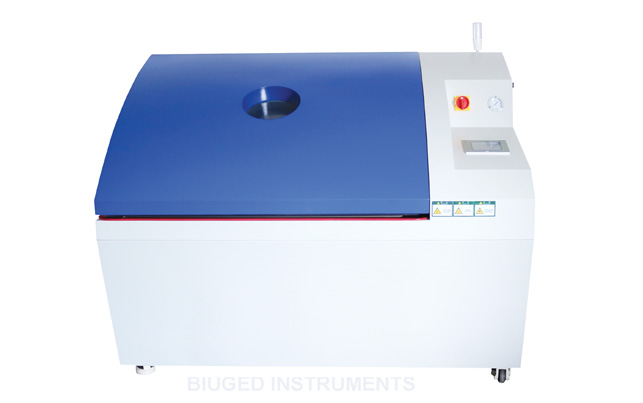

Biuged BGD 882/T New Programmable Salt Spray（Fog）Cabinets (1280 L, 190 samples)

■ Working Room Temperature Range：RT+5℃～55℃

■ Humidifying Tower Temperature Range：RT+5℃～65℃

■ Temperature Uniformity：≤ ±2℃（No-load）

■ Temperature Stability：≤ ±0.5℃ （No-load）

■ Temperature Deviation of Working Room：±1.0℃

■ Temperature Increasing Rate：RT→50℃ less than 45 minutes（working room）；RT→63℃ less than 45 minutes（saturated barrel）

■ Air supply requirements：filtered dry, waterless and oil-less pressure air, pressure 0.4～0.8Mpa

■ Working Room Size（W×H×D），mm: 1600×800×1000

■ Working Room Capacity（no including V shape cover）: 1280 L

■ Overall Size（W×H×D），mm: 2300×1600×1200

■ Max. Sample Capacity（15cm×7cm）: 190 pcs

■ Sprayed solution tank Capacity（L）: 300

■ Collectors: 2

■ Total Power: 4.6 kW

■ Salt Solution Consumption: 70 L/d

■ Compressed Air Consumption: 3 m3/h

■ Water Consumption of working room and saturator: 20 L/d

■ Power Supply: AC （220±10）V ；50Hz；Single-phase three-line

Datasheet
