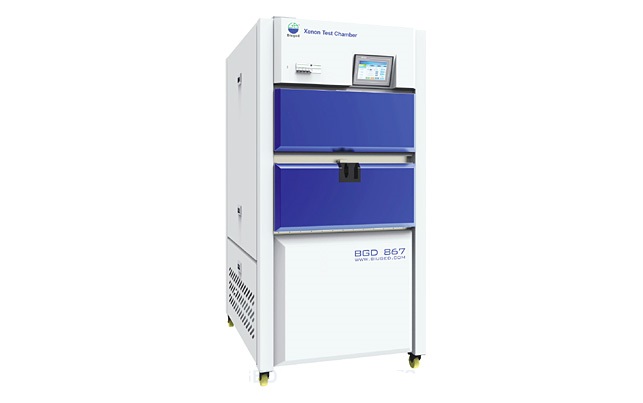

Biuged BGD 867 Cabinet Xenon Test Chamber (2.800 cm2)

■ Xenon Lamp：Three 1.8 kW xenon lamps（imported from America）

■ Filter：Daylight filter （Also can choose extended UV filter or window glass filter）

■ Lamp Lifetime: Near 1.500 hours

■ Exposure Area：2.800 cm2 (can put 25 standard samples 150mm×70mm)

■ Adjustable Irradiance Range：

30 W/m2～90 W/m2（@ 300nm～400nm）

0.3 W/m2～0.75 W/m2（@ 340nm）

0.5 W/m2～1.35 W/m2（@ 420nm）

310 W/m2～780 W/m2（@ 300~800nm）

■ Controlling Irradiance Point：340nm or 420nm or 300nm～400nm

■ Adjustable Black Panel Temperature Range：RT～90℃

■ Adjustable Relative Humidity of Working Room：10%～75%（Light）；10%～95%（Dark）；

■ Interior Material of Chamber：Aluminium profiles

■ Exterior Material of Chamber：Powder coating

■ Overall Size(W×D×H)：950mm×1200mm×2000mm

■ Net Weight：385 kg

■ Power Supply：Three-phase AC 380V，50 or 60Hz；Max. Current: 32A; Rated Power: 7.5kW

■ Requirements of Compressed air：Clean，oilless compressed air with 0.5MPa pressure，Max. air supply is near 60L/min. Average air consumption is 10L/min～30L/min（Depends on testing standard）
