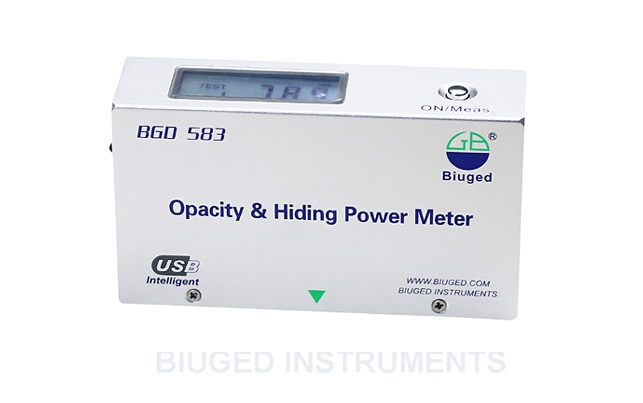

Biuged BGD 583 Opacity Meter/ Intelligent Reflectometer (0-99.9%, 0.1%)

■ Working Angle：45°（irradiate），0°（receive）；CIE Illuminant C

■ Range of Measurement：0-99.9%

■ Resolution：0.1%

■ Accuracy：±1 unit or 1% of full scale

■ Repeatability：≤ 0.5%

■ Power Supply：One 1.5V alkaline battery or rechargeable

■ Window Size: 12mm×17mm (ellipse)

■ Size：114mm×32mm×64mm

■ Weight：180g

■ Testing Environment：10℃～40℃, relative humidity should not be over 85%.
