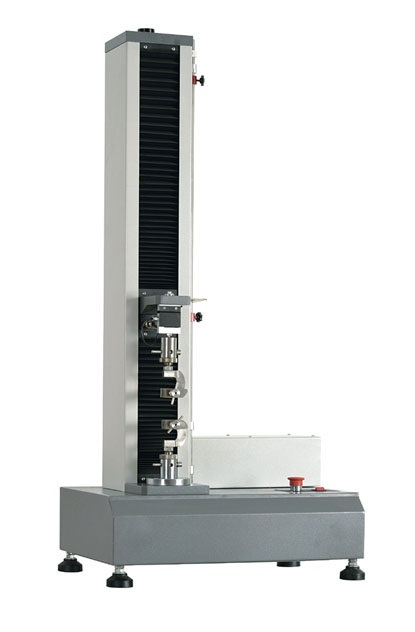

Biuged BGD 573 Computer Servo Tensile Machine (Single Column, 50N ~ 2KN)

- Computer Servo Tensile Machine (Single Column)

Power system: Fuji servo machine

Max. Range （Optional）: 50N, 100N, 200N, 500N, 1KN, 2KN

Convertible Units: g，kg, N, LB（supply with three units which include international standard, metric, inch, they can convertible by automatically）

Measuring Range of Test Force: 1%～100% FS (full range)

Display Error of Test Force: ≤ ±1%

Resolution of Test Force: 1/500.000

Resolution of Displacement: 0.015μm

Displacement Display Error: ≤ 0.2%

Max. Space of Tension: 800mm (clamp is not included)

Test Speed: 0.01-500mm/min （stepless speed regulating）

Valid Test Width: unlimited

Overall Size（L×W×H）: 450×550×1350mm

Weight: 100 KG

Power Supply: 220V/50HZ；15A or designation

Power: 400W
