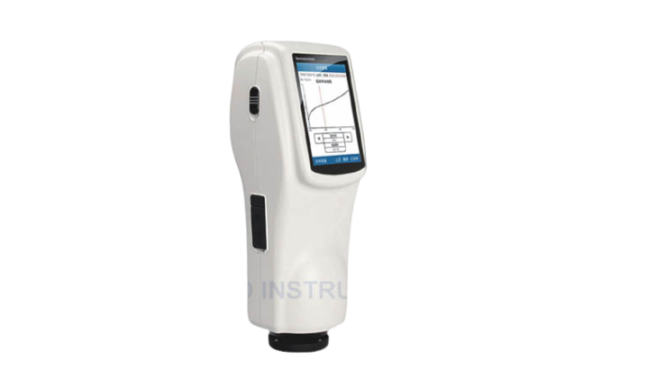

Biuged BGD 557 Spectrophotometer (400 ~ 700nm, Ф58 mm)

Illuminating/Observation System: 45°/0° (45 ring-shaped illumination, vertical viewing)

Integrating sphere Size: Ф58 mm

Light Source: Combined LED sources

Spectroscopic Mode: ---

Sensor: Silicon photodiode array

Wavelength range: 400~700nm

Wavelength interval: 10nm

Reflectance range: 0~200%

Illuminating/Measuring Aperture: Single Aperture: MAV（Big Aperture）：Φ8mm/Φ10mm

Measurement Mode: SCE

Color Space: CIE LAB XYZ; Yxy; LCh; CIE LUV

Color difference Formula: AE*ab, ΔΕ*υν, ΔΕ 94, ΔΕ cmc (2:1),ДЕ*cmc (1:1),

ΔE*00

Other Chromaticity Data: WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness

Observer: 2°/10°

Illuminant: D65, A,C,D50, D55, D75, F1, F2 (CWF),F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5) F11 (TL84),F12 (TL83/U30)

Display Contents: Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset , Color Simulation

Display Data: Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color indexsetting (AE*94, ΔΕ*cmc, ΔΕ2000) tolerance prompt, reverse prompt, time setting, language setting, restore factory setting

Measurement Time: 1.5s

Repeatability: Spectral Reflectance: standard deviation within 0.1% (400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement: MAV/SCI，within ΔE*ab 0.2（Average value of 12 pcs BCRA II series color tiles）

Measurement Mode: Single Measurement，Average Measurement（2~99 times）

Locating Mode: ---

Dimension/Net Weight: 90×77×230 (L×W×H) /600g

Battery: Li-ion battery: 5000 times within 8 hours

Lamp Life: 5 years, more than 1.6 million measurements

Display Screen: TFT 3.5inch, Capacitive Touch Screen

Interface: USB/RS-232

Data Memory: 1.000 Standards, 15.000 Samples

Operating Tem. Range: 0~40℃，0~85%RH（No condensation），Elevation: Below 2000 m

Storing Tem. Range: -20~50℃，0~85%RH（No condensation）

Standard Accessory: Power Adapter, Li-ion Battery, ，Data line，Operating Instruction，CD-ROM（containing management software）、White and black calibration cavity，Protective cover
