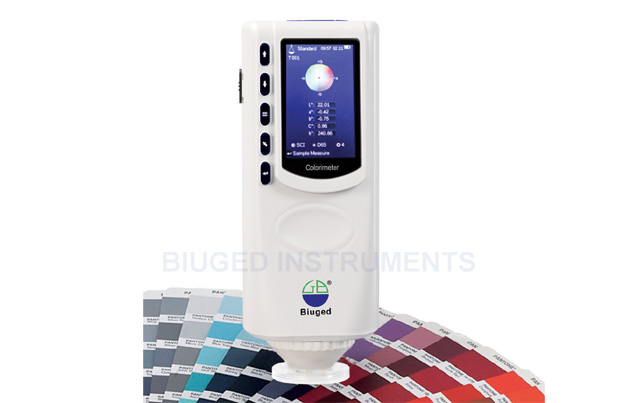

Biuged BGD 551 Economic Portable Colorimete (Φ4mm, 8/d)

Illuminating/Viewing Geometry: 8/d

Measuring Aperture: Φ4mm

Detector: Silicon photoelectric diode

Locating: Illuminating Locating/Cross Locating

Measurement End Face: Large stable end-face and small concave-convex end-face

Color Space: CIEL*a*b*C*h* ；CIEL*a*b*；CIEXYZ

Color Difference Formula: △E*a b △L*a*b* △E*C*h*

Light Source: D65

Light Source Device: LED blue light excitation

Errors Between Each Equipment: ≤0.80ΔE*a b

Storage: 100 pcs standards: 20,000 pcs samples

Repeatability: Standard deviation within △E* a b 0.08（Average of 30 measurements of standard white plate）

Language: English/Chinese

Weight: 500 g

Dimension: 205mm×67mm×80mm

Power source: Rechargeable lithium-ion battery 3.7V@3200mAh

Lamp Life: 3 years, more than 1.6 million measurements

Charging Time: 8 hours--100% electricity

PC Software: CQCS3 Software
