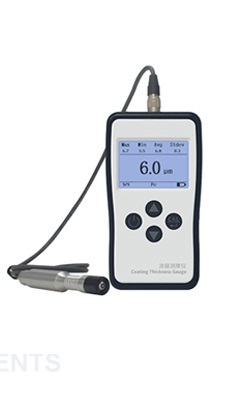

Biuged BGD 547 Precise Dry Film Thickness Gauge (External cable probe, Magnetic metal, 0.0-500μm)
ManufacturerBiuged(View more products from this manufacturer)
ModelBGD 547
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Probe: External cable probe
Substrate: Magnetic metal
Measuring Range: 0.0-500μm
Resolution: 0.1μm （＜100μm）；1μm（100μm～999μm）；10μm（＞1000μm）
Accuracy: ≤±（2% reading+0.3μm）
Minimum Curvature: Convex:1.5mm / Concave:10mm
Minimum Measuring Area: Diameter: 7mm
Minimum Substrate Thickness: 0.1mm
Display: 240×160 dot matrix LCD
Power Supply: 4pcs of 1.5V AAA alkaline battery
Dimension/Weight: 148mm×76mm×26mm/194g (with battery)
Optional Accessories: Hand test fixture
