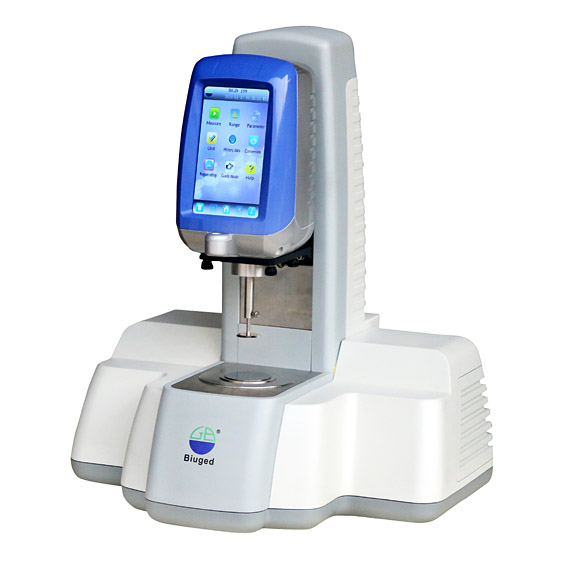

Biuged BGD 159/4 Cone and Plate Viscometers (5-1000 RPM)

@5-1000 RPM

Cone No.：CAP-01

Shear Rate：13.3N

Sample Volume：67μL

=>20-37,500 mPa.s

Cone No.：CAP-02

Shear Rate：13.3N

Sample Volume：38μL

=> 37-75,000 mPa.s

Cone No.：CAP-03

Shear Rate：13.3N

Sample Volume：24μL

=> 75-150,000 mPa.s

Cone No.：CAP-04

Shear Rate：3.3N

Sample Volume：134μL

=> 150-300,000 mPa.s

Cone No.：CAP-05

Shear Rate：3.3N

Sample Volume：67μL

=> 300-600,000 mPa.s

Cone No.：CAP-06

Shear Rate：3.3N

Sample Volume：30μL

=> 750-1,500,000 mPa.s

Cone No.：CAP-07

Shear Rate：2.0N

Sample Volume：1700μL

=> 32-63,000 mPa.s

Cone No.：CAP-08

Shear Rate：2.0N

Sample Volume：400μL

=> 125-250,000 mPa.s

Cone No.：CAP-09

Shear Rate：2.0N

Sample Volume：100μL

=> 500-1,000,000 mPa.s

Cone No.：CAP-010

Shear Rate：5.0N

Sample Volume：170μL

=> 50-100,000 mPa.s
