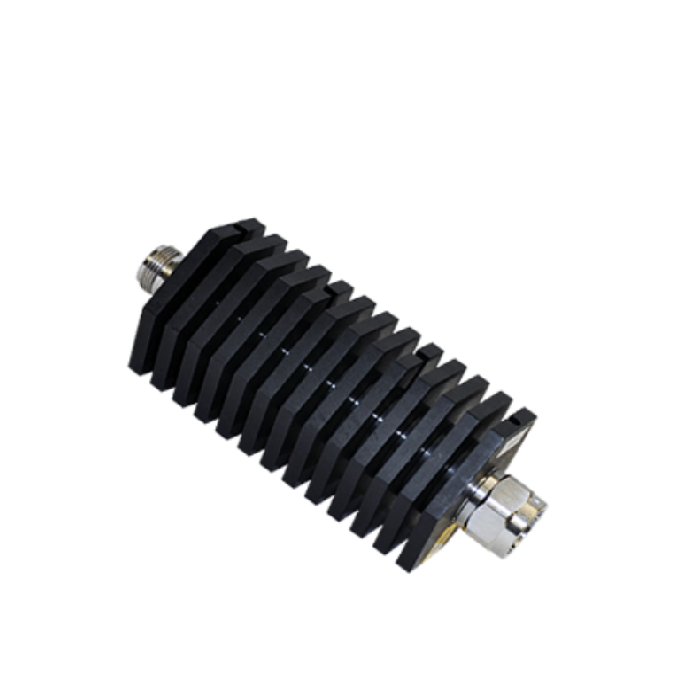

Bird 8353A040-50 Bi-Directional RF Attenuators (50W)
ManufacturerBird(View more products from this manufacturer)
Model8353A040-50
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Rating: 50 W
Frequency Range: 40-4000 MHz
VSWR and Attenuation Accuracy: 1.20:1 Max.
Product Type: Dry (Convection-Cooled)
Attenuation: 40 dB ± 2.0 dB
Impedance: 50Ω
Connector:
N (M) - Input
N (F) - Output
Operating Temperature: -10 to +50 °C (-23 to +4.4 °F)Body: Aluminum
Dimensions: 5.3" L x 2.3" Dia./ (135 x 58.42 mm)
Weight: 1.0 lbs. (0.45 kg)
