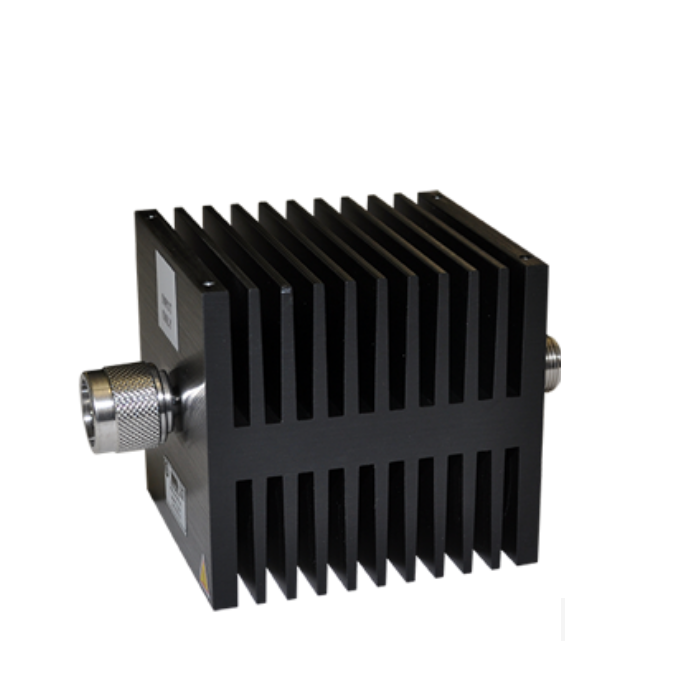

Bird 8353A040-50-18 Bi-Directional RF Attenuators (50W)
ManufacturerBird(View more products from this manufacturer)
Model8353A040-50-18
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Rating: 50W
Frequency Range: DC to 18 GHz
VSWR and Attenuation Accuracy:
DC to 6 GHz: 1.25:1 max.
6 GHz to 12.4 GHz :1.35:1 max.
12.4 GHz to 18 GHz: 1.45:1 max
Attenuation: 40 dB ± 1.5 dB
Impedance: 50Ω
Connector: N, (M/F)
Operating Temperature: -65 to +125 °C
Body: Aluminum
Dimensions: 3.00" SQ x 4.75" Long
Weight: 1.66 lbs.
