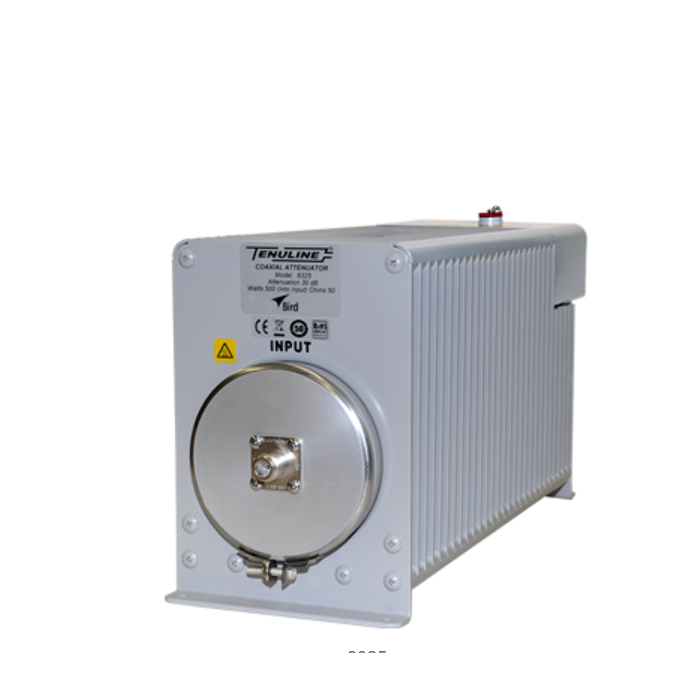

Bird 8325 Bi-Directional RF Attenuators (500W)
ManufacturerBird(View more products from this manufacturer)
Model8325
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Rating: 500 W continuous
VSWR and Frequency Range: Input 1.1 max. DC - 500 MHz
Product Type Oil-Cooled
Coolant: 0.9 gal. (3.4 liters)
Attenuation: 30
Accuracy: ±0.5 dB
Connector: N, (F)
Operating Temperature: -40 to +45°C (-40 to +113°F)
Operating Position: Horizontal only
Finish: Gray Powder Coat
Dimensions: 17-1/2" x 5-15/16" x 8-1/2" / 445 x 151 x 216 mm
Weight: 25 lbs. (11 kg)
