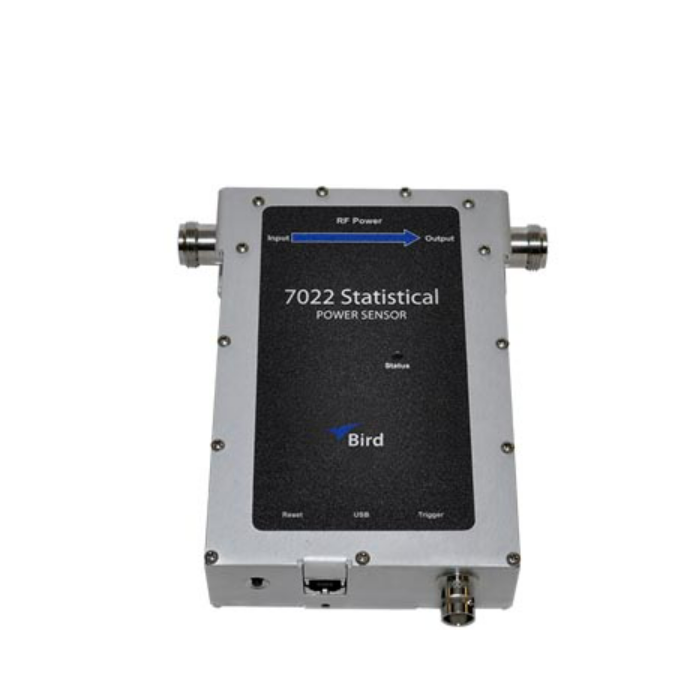

Bird 7022 RF Power Sensor (350 MHz ~ 6 GHz, 0.25 W ~ 500 W)

Frequency Range: 350 MHz to 6 GHz

Power Range: 0.25 W to 500 W

Dynamic Range: 33 dB

Impedance: 50Ω

Insertion VSWR:

1.065 350 to 2000 MHz (max)

1.12, 2000 to 6000 MHz (max)

Insertion Loss: 0.05 dB Max

Connectors: N (Female)

Interface: USB 2.0 Type B (USBTMC)

Power Supply: USB Port

Sample Rate: 44 M Samples/s (max)

Temperature Operating: –10 to +50 °C (+14 to +122 °F)

Storage: –40 to +80 °C (–40 to +176 °F)

Humidity: 95% (max), non-condensing

Dimensions: 5.9 in x 4.8 in x 1.3 in (150 mm x 122 mm x 33 mm)

Weight: 1.5 lbs (max)
