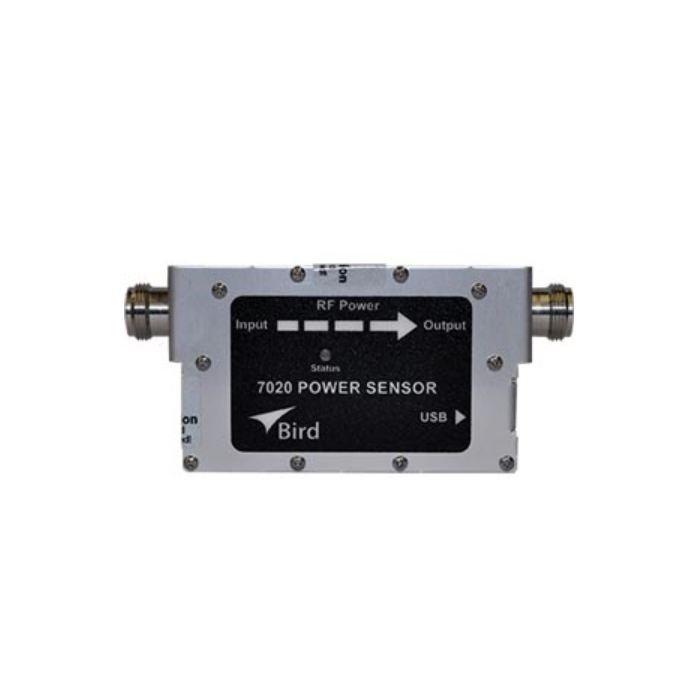

Bird 7020-1-020101 RF Power Sensor (350 MHz ~ 4.2 GHz; 0.15 W ~ 150 W)

Frequency Range: 350 MHz to 4.2 GHz

Power Range: 0.15 W to 150 W

Impedance: 50Ω

Insertion VSWR: 1.1 Max

Insertion Loss: 0.1 dB Max

Response Time: 3 sec.

VSWR Range: 1.15 to 99.9

Connectors: N (F)

Power Supply:

Source: 5Vdc from USB host

Current Draw: 35 mA

Weight: 1.0 lbs (0.45 kg)

Dimensions H x W x D: 4.8 in x 2.6 in x 1.3 in/ (122 mm x 66 mm x 32 mm)

Operating Temperature: -30 °C to +60 °C (-22 °F to +140 °F)

Storage Temperature: -40 °C to +80 °C (-40 °F to +176 °F)

CE: EMC EN 61326-1-2006
