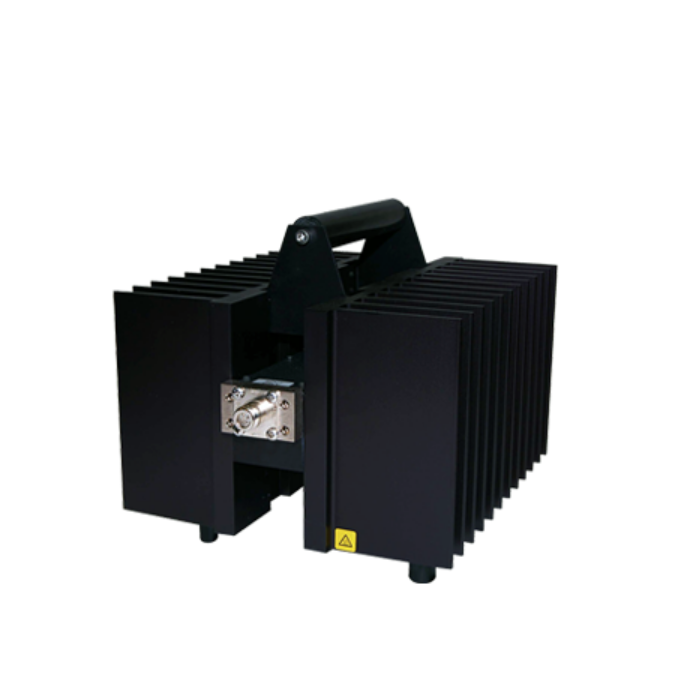

Bird 600-A-MFN-03 Uni-Directional RF Attenuators (600W, Male/Female, N, 03dB)
ManufacturerBird(View more products from this manufacturer)
Model600-A-MFN-03
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Rating: 600 W
Connector: N
VSWR and Frequency Range:
1.10:1 from DC to 1 GHz
1.25:1 from 1 to 2.4 GHz
Coolant Method: Dry, Convection Cooled
Temperature: -40 to 40 °C (-40 to 104 °F)
PIM: -110 dBc Min.
Humidity: 95% non-condensing
Standard Attenuation Values: 3dB
Dimensions: 12.7” x 9.4” x 9.6”/ 323 x 239 x 244 mm
Weight: 21.5 lbs./ 9.8 kg
