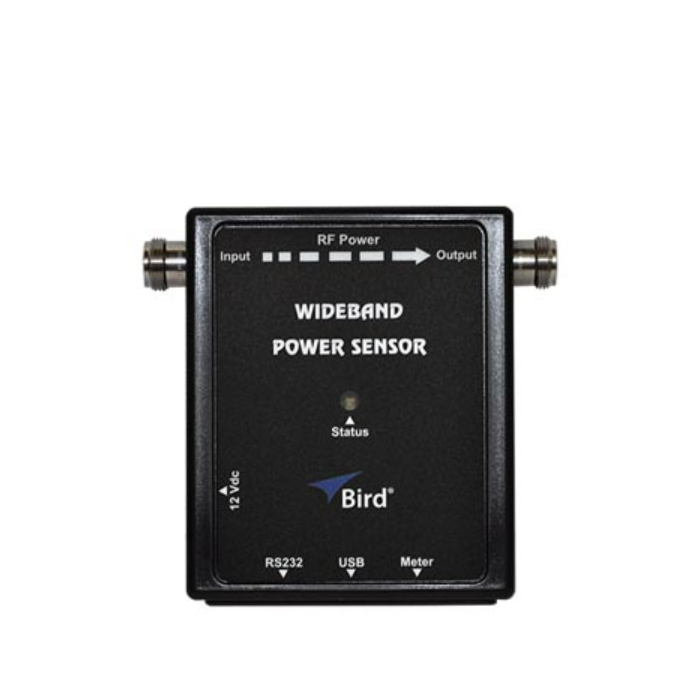

Bird 5019D RF Power Sensor (25 MHz ~ 1.0 GHz)

Frequency Range: 25 MHz to 1.0 GHz

Power Range: 100 mW to 100 Watts Avg., 260 Watts Peak

Impedance: 50Ω

Insertion VSWR:<1.05

Insertion Loss: <0.05 dB

Connectors: N Female (Both)

Power Supply: USB load DC Input Connector: 7-18 VDC at less than 0.1A

Weight: 1.2 lbs., (.54 kg) max.

Dimensions H x W x D: 4.8 in x 4.6 in x 1.3 in/ (122 mm x 117 mm x 33 mm)

Operating Temperature: -10 °C to +50 °C (+14 °F to +122 °F)

Storage Temperature: -40 °C to +80 °C (-40 °F to +176 °F)

CE: EMC EN 61326-1-2006
