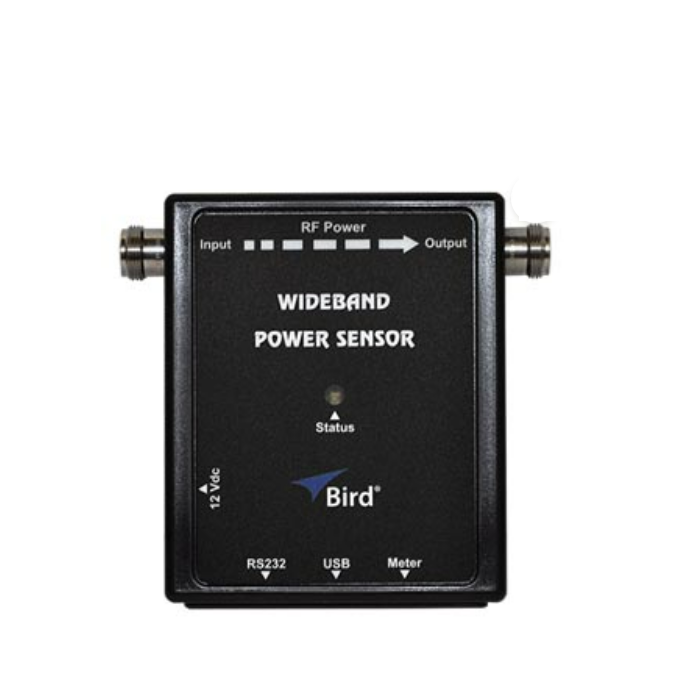

Bird 5012D RF Power Sensor (350 MHz ~ 4.0 GHz)

Frequency Range: 350 MHz to 4.0 GHz

Power Range: 150 mW to 150 Watts Avg., 400 Watts Peak

Impedance: 50Ω

Insertion VSWR:

<1.05 from 0.35 to 2.5 GHz

<1.10 from 2.5 to 4 GHz

Insertion Loss:

<0.05 dB from 0.35 ~ 1.0 GHz

<0.1 dB from 1 ~ 4 GHz

Connectors: N Female (Both)

Power Supply: USB load DC Input Connector: 7-18 VDC at less than 0.1A

Weight: 1.2 lbs., (.54 kg) max.

Dimensions H x W x D: 4.8 in x 4.6 in x 1.3 in/ (122 mm x 117 mm x 33 mm)

Operating Temperature: -10 °C to +50 °C (+14 °F to +122 °F)

Storage Temperature: -40 °C to +80 °C (-40 °F to +176 °F)

CE: EMC EN 61326-1-2006
