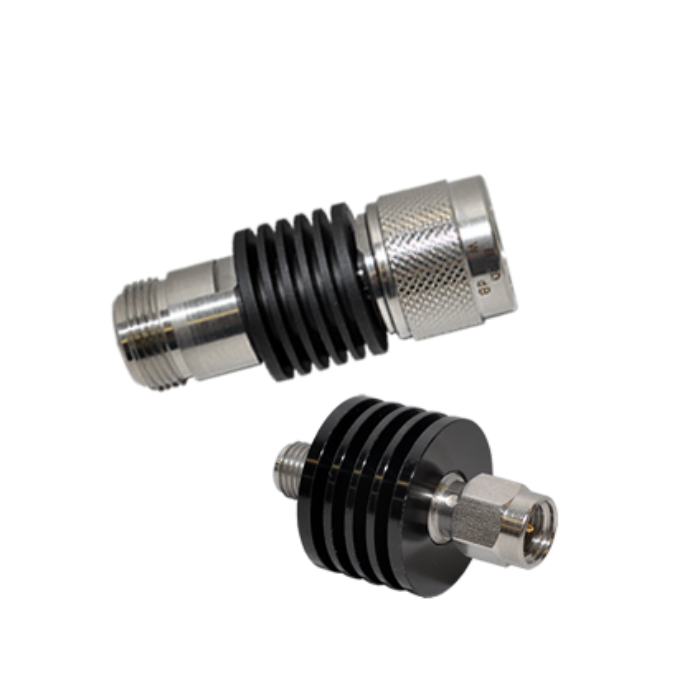

Bird 5-18A Bi-Directional RF Attenuators (5W)
ManufacturerBird(View more products from this manufacturer)
Model5-18A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Rating: 5 W
Connector: SMA, N
VSWR and Frequency Range:
1.15:1 from DC to 4 GHz
1.25:1 from 4 to 12.4 GHz
1.35:1 from 12.4 to 18 GHz
Coolant Method: Dry, Convection Cooled
Impedance: 50 Ohm
Temperature: -40 to 40 °C (-40 to 104 °F)
PIM: -110 dBc Min.
AC Power: None
Humidity: 95% non-condensing
Standard Attenuation Values: 3, 6, 10, 20, 30 dB
Dimensions: Dia. 2.5” x 0.9” / 64 x 23 mm
Weight: 3.5 oz./100 g
Finish: Stainless Steel
