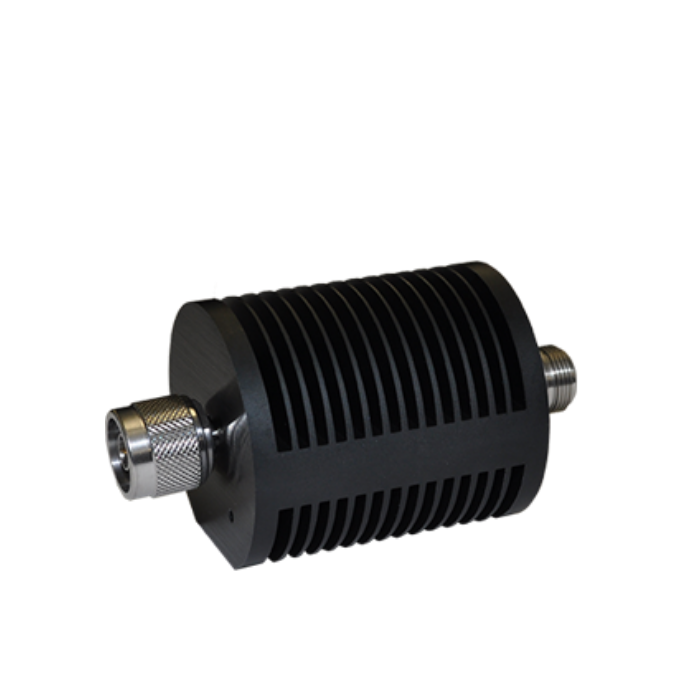

Bird 25-18A-MFN-03 Bi-Directional RF Attenuators (25 W, 18GHz, Male/Female, N, 03dB)
ManufacturerBird(View more products from this manufacturer)
Model25-18A-MFN-03
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Rating: 25 W
Connector: N
VSWR and Frequency Range:
DC to 6 GHz: 1.20:1 (max)
6 to 12.4 GHz: 1.30:1 (max)
12.4 to 18 GHz: 1.40:1 (max)
Coolant Method: Dry, Convection Cooled
Impedance: 50Ω
Temperature: -65 to 125 °C (-85 to 257 °F)
Standard Attenuation Values: 3 dB
Dimensions: 4.20 Long x 2.30 SQ.
Weight: 13.3 oz approx.
Finish: Black Anodized Aluminum
