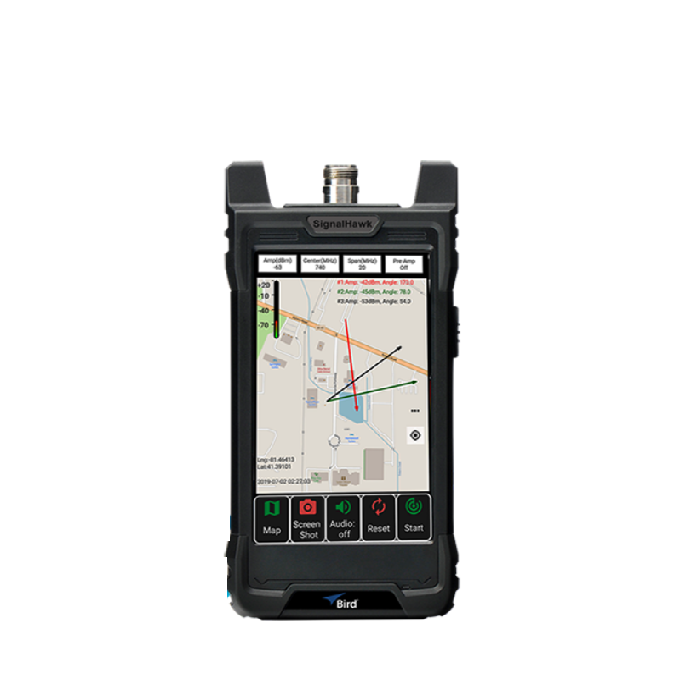

Bird SH-60S-TC Handheld Spectrum Analyzer (9 kHz ~ 6 GHz)

Frequency:

Range: 9 kHz to 6 GHz

Resolution: ±1%

Aging: ±1 ppm

Sweep Time:

1.1 ms to 1600 s Full Span

2.69 ms to 1600 s Settable Zero Span

Resolution Bandwidth: 10 Hz to 5 MHz in 1, 2, 3, 5, 10 Steps

Accuracy: ≥1 MHz, ±10% (<1 MHz, ±2%)

Second Harmonic Distortion: 1.6 GHz -70 dBc

Phase Noise:

-95 dBc/Hz,@10 kHz (typical -97 dBc/Hz)

-115 dBc/Hz,@1 MHz (typical -116 dBc/Hz)

Measurement Range: DANL to +20 dBm

Input Attenuator: Range: 0 to 30 dB, 1 dB step

Uncertainty: ±0.6 dB

Connectors: RF In: N (Female); USB: USB type C

Display: 5.5 inch, 1280 x 720 pixel

Languages: English, Chinese

Battery Type: Li-ion

Operating Time: 5 hours (typ)

Charge Time: 6 hours (typ)

Temperature Range:

Operating: 0 to 50°C

Storage: -20 to 70°C

Dimensions: 7.8" x 3.7" x 2.4" (197 x 93 x 61 mm)

Weight: 1.98 lb (0.9 kg)
