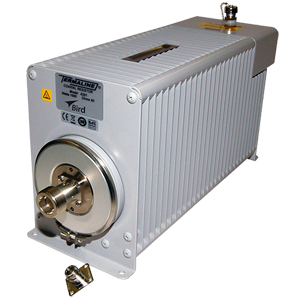

Bird 8251N Oil-Cooled RF Termination

Power Rating : 1000 W continuous

Frequency Range and VSWR : DC - 1 GHz @ 1.1 max.

1 GHz - 2 GHz @ 1.25 max.

2 GHz to 2.4 @ 1.3 max.

Connector : QC-N connector for lower –power testing

Temperture Range : -40 to +45 °C

Coolant : 1.1 gal. (4.1 liters) Silicon Oil

Product Type Oil-Cooled

Operating Position : Horizontal Only

Connectors See Model Matrix

Finish : Gray Powder Coat

Dimensions 17-29/32" x 5-15/16" x 8-1/2" (L x W x H) 455 x 151 x 216 mm

Weight 25 lbs., 8 oz. (11.5 kg)
