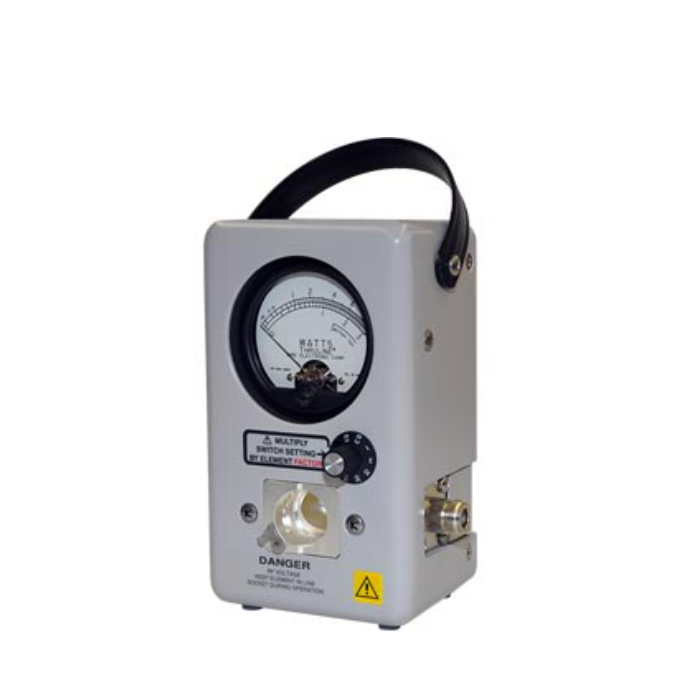

Bird 4412A RF Wattmeter (300 mW ~ 1 kW hoặc 2 W ~ 10 kW)

Power Range: 300 mW to 1 kW or 2 W to 10 kW

Frequency Range: 200 kHz to 2.3 GHz

Insertion VSWR: with N Connectors 1.25 max. to 2300 MHz

Accuracy: ± 5% of full scale

Connectors: QC Type

Battery: 9-Volt Batteries

Finish: Light Gray Powder Coat

Dimensions(H x W x D): with connectors 6.88 in x 5.13 in x 3.63 in/ 175 mm x 130 mm x 92 mm

Weight: 3.33 lbs. (1.5 kg)

Manual
