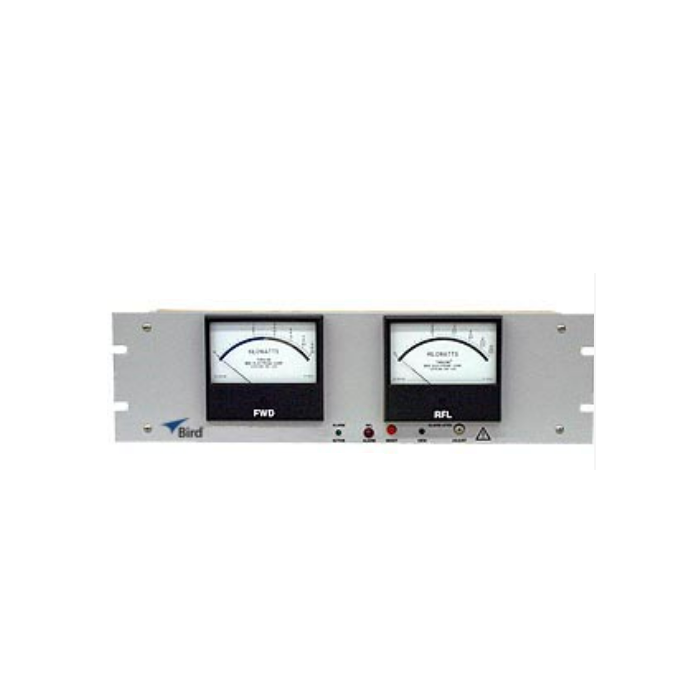

Bird 3126A RF Power Monitor (300 W ~ 60 kW)

Power Range: 300 W to 60 kW

Frequency Range: 2 MHz - 1 GHz

Insertion VSWR

Accuracy: ± 5% of full scale

Meter Scales:

(FWD) 5, 30, 60 kW

(RFL) 1.5, 3, 6 kW

Meter Sensitivity: 100 µA/3000 ohm

Alarms: Front Panel Buzzer and Red LED

AC Power: 115/230 V, 50/60 Hz @ 0.125 A max.

DC Power: 9 to 16 V @ 1 A max.

Connectors

Finish: Gray Powder Coat

Dimensions(W x H x D):

19" x 5-7/32" x 3-3/4"

483 x 133 x 95 mm)

Weight: 5 lbs. (2.28 kg)
