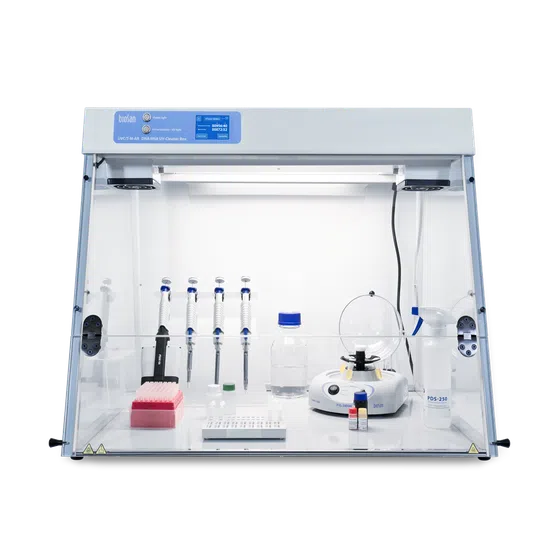

Biosan UVC/T-AR PCR cabinet (18 mW/cm²/sec)

Display: 3.5″, medical glove compatible

Wall material: Plexiglas (PMMA) ALTUGLAS EX

Working surface: Steel with chemical-resistant powder coating

UV lamp: 1 × 25W built-in bactericidal UV-C (TUV 25W 1SL/25)

UV radiation level: 18 mW/cm²/sec

Radiation type: UV (λ = 253.7 nm), ozone-free

UV exposure timer: 1 min–24 hrs / continuous (1 min increment)

UV recirculator: 1 × 25W (>99% efficiency per hour)

Daylight lamp: 1 × LED 8W

Panel thickness:

Side: 4 mm

Upper front: 8 mm

Screen: 8 mm

Optical transmission: 92%

UV protection: >99.90% (PMMA ALTUGLAS EX)

Working area: 645 × 490 mm

Opening dimensions (fully raised screen): 645 × 165 mm

Safety feature: Auto UV lamp shut-off when screen is open

Power outlets inside: Yes

Overall dimensions (W×D×H): 720 × 535 × 555 mm

Weight (net/gross): 21.4 / 30 kg

Power consumption: 64 W

Operating voltage: 100–240 V, 50/60 Hz

Optional table: T-4 (800 × 600 × 770 mm)
