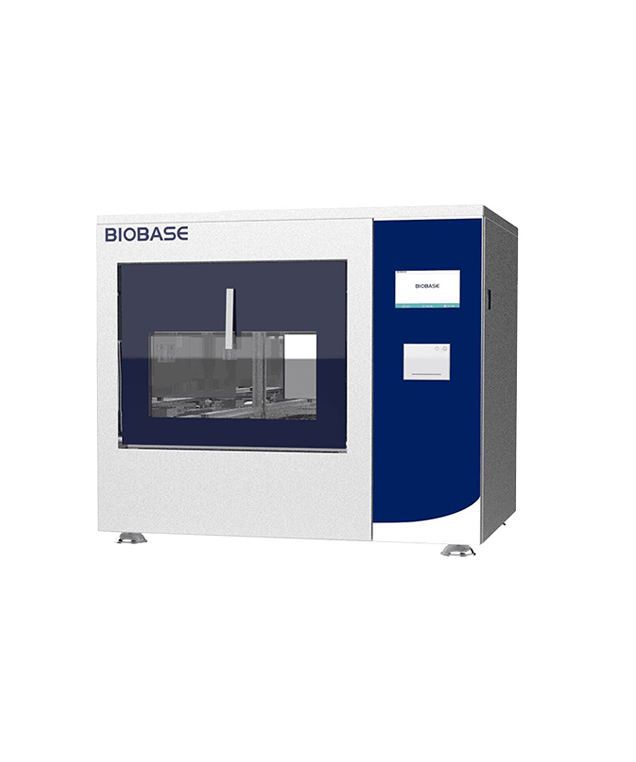

BIOBASE BKX-CQS-120 Washer Disinfector

Cleaning:

Capacity(L): 120

Washer Load Level: 1

Water Wash Power(KW): 5

Water Heater Power(KW): 3

MAX. Power(KW): 6

Water Consumption/Cycle(L): 15

Tank Internal Temperature(℃): 0~95

Water Supply Pressure(Mpa)

Tap water: 0.3~0.8

Pure water: 0~1

Peristaltic Pump for Cleaning Agent: 2

Cleaning Agent Level Sensor: YES

Washing Pump: Sweden 430L/min

Standard Cleaning Racks: BKXIR36,1pc

Drying:

Drying Function: YES

Steam Condenser: YES

Dry Power(KW): 3

Control System and Traceability

Control System: 7" color LCD touch screen display, microprocessor

Cleaning Program: 12 pre-set programs+4 PLC free programming

Password Protection: YES

Safety Emergency Button: YES

USB Port: YES

Integrated Printer: YES

Online Monitor Performance of Washing: YES

Dimensions

Chamber Dimension(W*D*H, mm): 600*630*460

Exterior Dimension(W*D*H, mm): 980*740*870

Others

Door: Double-layered glass door, 304 stainless steel

Safety Door Lock: YES

Built-in RO Water Pump: YES

Noise(dB): <50

Voltage(V/Hz)

Standard: AC220V, 50Hz

Optional: AC220V, 60Hz; 110V, 50/60Hz
