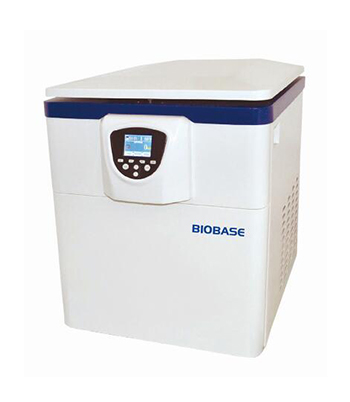

BIOBASE BKC-VH20RII High Speed Refrigerated Centrifuge

Manufacturer: BIOBASE

Model: BKC-VH20RII

Origin: China

Warranty: 12 months

Features:

- LCD display, indicating setting parameters and actual parameters at the same time.

- Brushless motor: Controlled by micro chip's dsPIC30F series SCM and driven by FAIR CHILD’S FSBB30CH series driver module.

- Safety: over-speed and over-temperature protection, imbalance detection shock absorber to keep motor running smoothly.

- Mute mechatronics motor door lock.

- Over 20 selectable procedures and freely self-defining modes.

- 10 levels speed-up and speed-down control.

Max. Capacity4*750ml

Max. Speed:20600rpm

Max. RCF:29400xg

Standard Rotor:12*1.5/2.0ml

Speed Precision:±50rpm

Refrigeration System:Import CFC-free compressor and control valve (R404a)

Temp. Range:-20oC-40oC

Temp. Precision:±1°C

Timing Range:0?99h59min

Noise:<65dB

Identify Rotor:Automatic

Consumption:2.0KW

Power Supply:AC220V, 50Hz

External Size(W*D*H) mm:710*560*770mm

Packing Size(W*D*H) mm:860*690*1125

Net/Griss Weight(kg):160/218

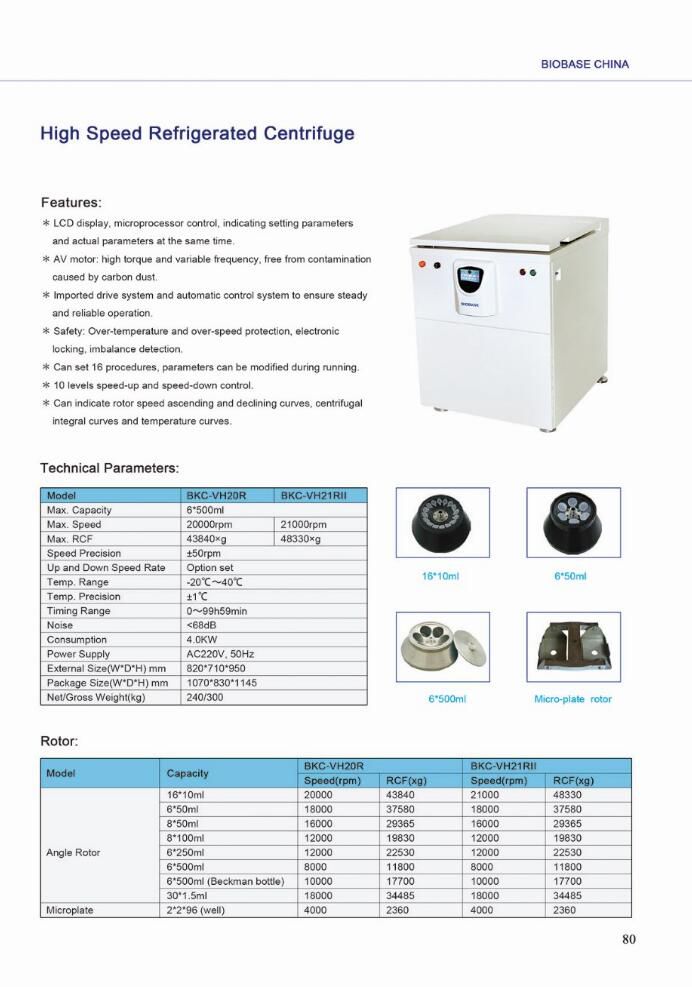

Brochure
