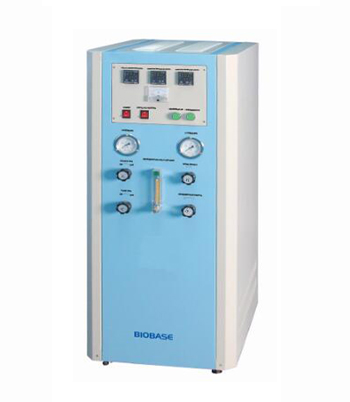

BIOBASE BKAP-4C Argon Gas Purifier

Feature:

- High catalytic activity, huge adsorption quantity, low working temperature, efficient device.

- Renewable type, can be used repeatedly for a long time.

- Reuse without hydrogen and vacuum but with the few argon, safe and reliable.

- The valve are all stainless bellows type, without leakage.

- Double structures. One group works while the other group is reserved, long gas supplying system.

Original Gas Demand: Purity: ≥ 99.9%; Impurity Content: O2<1000ppm;H2O<1000ppm

Output Gas Purity: Purity: ≥ 99.999%; Impurity content: O2≤0.5PPm；H2O≤1PPm(Dew point≤-76℃)； CO+CO2≤0.1PPm；S,P Oxides≤0.1PPm； Number of dust particles(≥0.3μm)3-5s/L；

Operating Pressure: ≤0.8MPa

Max Flow Rate: ≤60L/min

Flow Rate Of Regenerating Argon: 500 ml/min

Regenerating Temperature Of The Absorber: 400±20℃

Work Temperature Of The Reactor: 300±20℃

Power Supply: AC110/220V±10%, 50/60Hz

Consumption: 1600W

External Size (W*D*H) mm: 420*600*1230

Package Size (W*D*H) mm: 510*710*1300

Net Weight(kg): 135

Gross Weight(kg):170

Optional Accessory: N2 removal tower

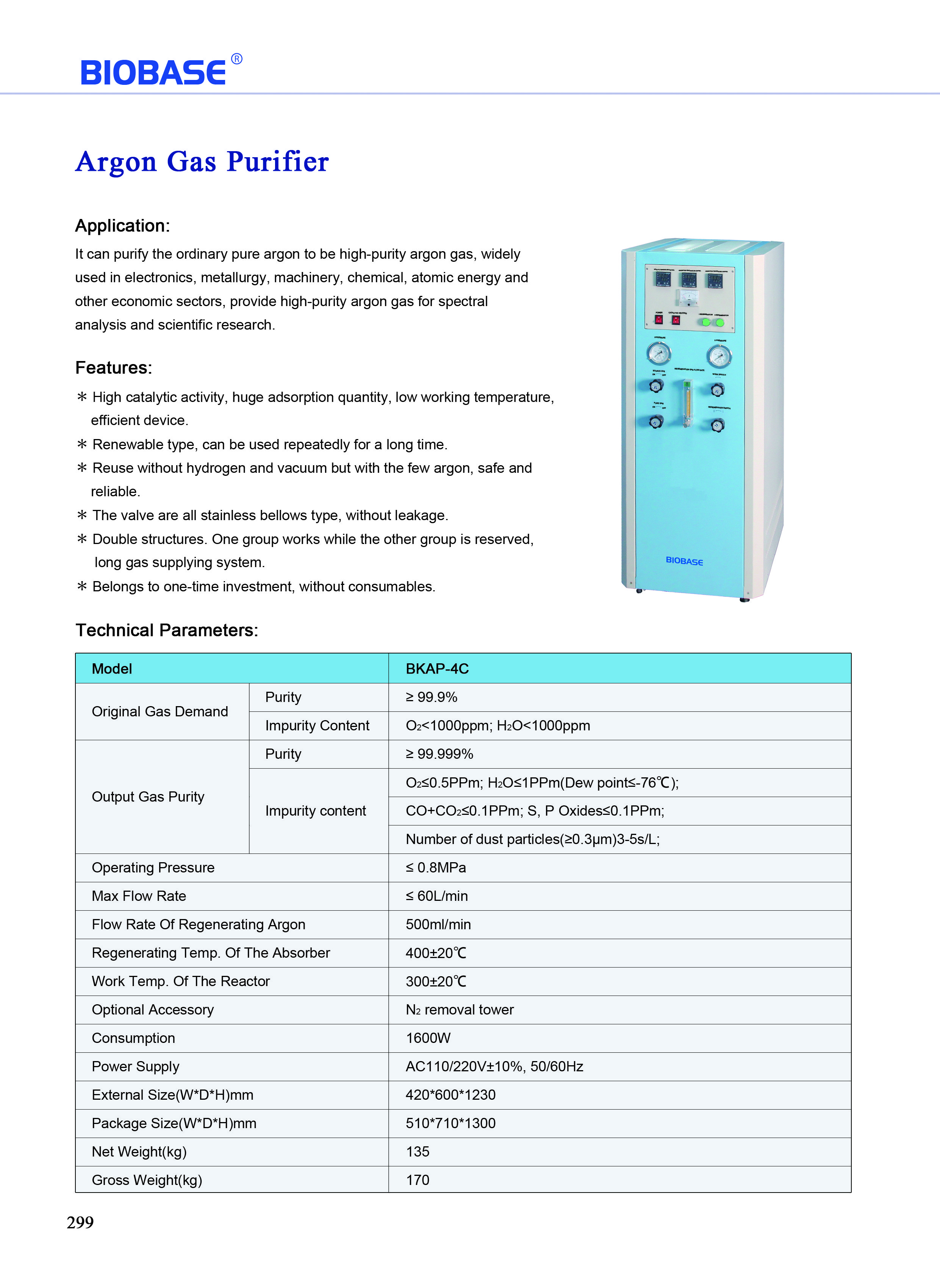

Brochure
