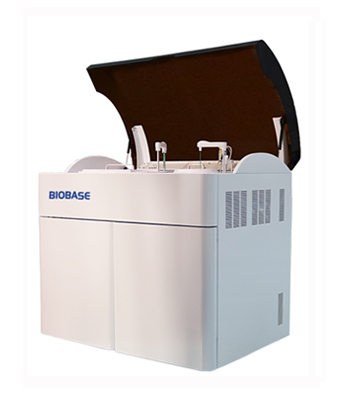

Manufacturer: BIOBASE
Model: BK-480(RUBY)
Origin: China
Warranty: 12 months
Features: 120 Sample positions; 90 Reagent positions; 90 Reaction cuvettes; 400 Tests /Hour
Type:Vertical,Discrete,Fully automatic
Throughput:400T/H
Analysis: MethodEnd-point,kinetic,Two-point
Sample & Reagent Unit
Sample Positions:120 sample positions
Reagent Positions:90 pcs (With refrigerated function)
Sample Volume:2-30ul,0.1μl step
Reagent Volume:20-300μl,1μl step
Sample& Reagent Probe: Automatic liquid level detecting; Collision protection function; Probe internal/external washing; Probe deepth automatic adjustmen
Probe cleaning:Automatic washing both interior and exterior
Reagent tray cooling:Continuous 2℃~8℃ cooling within 24 hours
Reaction Unit
Reaction Time:10 minutes
Temperature Control:37±0.1℃,automatic heating
Cuvettes:90 reusable reaction cuvettes
Washing:After finishtesting, washing probe wash cuvettes automatically
Light Source:Halogen-tungsten lamp
Wavelength:340-700nm,8 wavelengths,(4 positions are optional)
Absorbance range :0-4.00Abs
Linear Range:0.0001Abs
Intelligent software:Automatic washing cuvette when start test&finish test，Automatic detect sample& reagent volume，Reaction temperature detecting when startup
Alarm:Automatic alarm of no reagent,no sample,wrong run,out of linearity range etc, Automatic re-test sample in next order after no reagent
Software:Windows 7,Windows 8 or above, windows XP
Power Supply:AC110/220V,±10%, 50/60Hz,1000VA
Package Size(W*D*H):1220*1340*890mm
Gross Weight:200kg

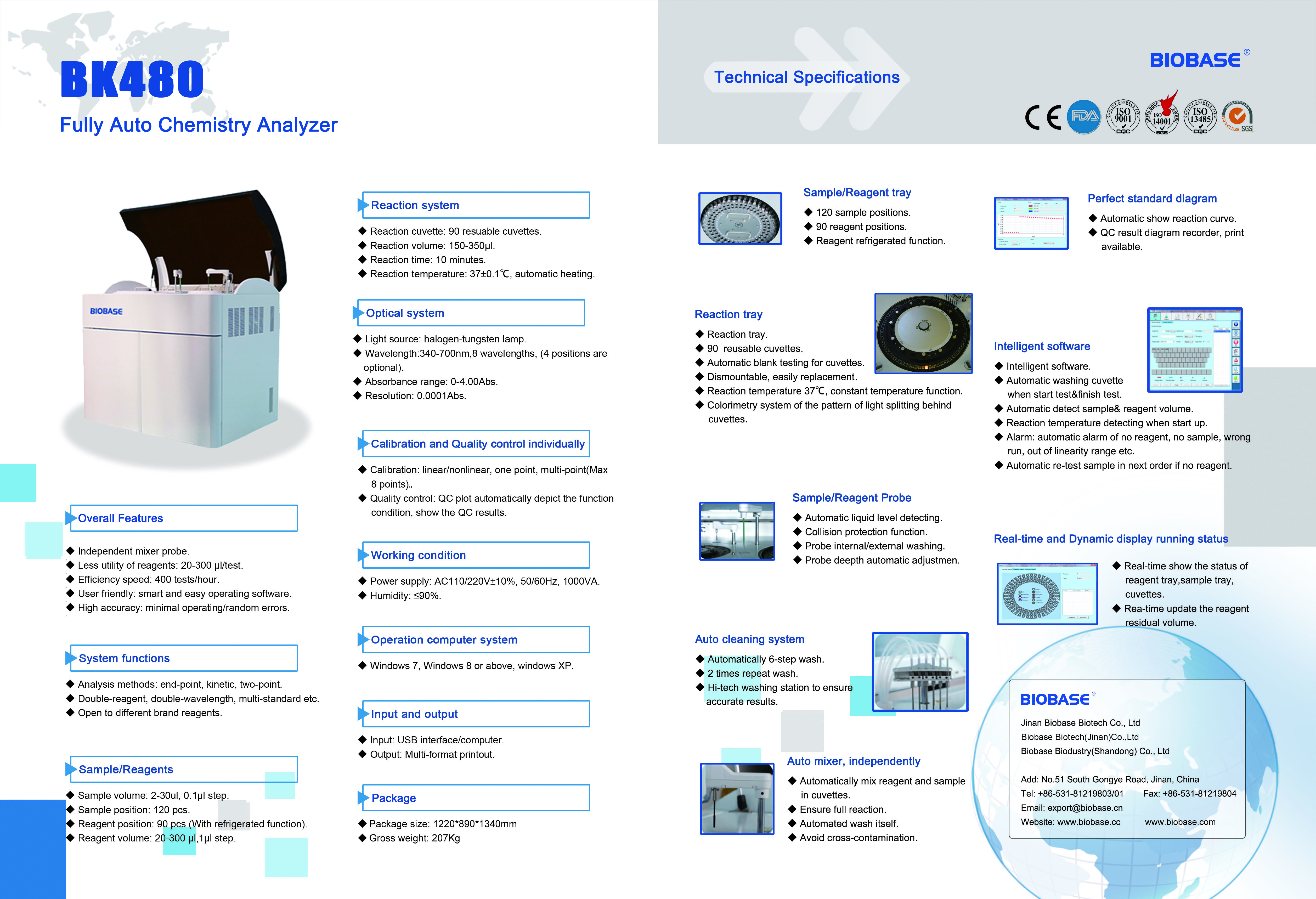

Brochure
